Series: Machete

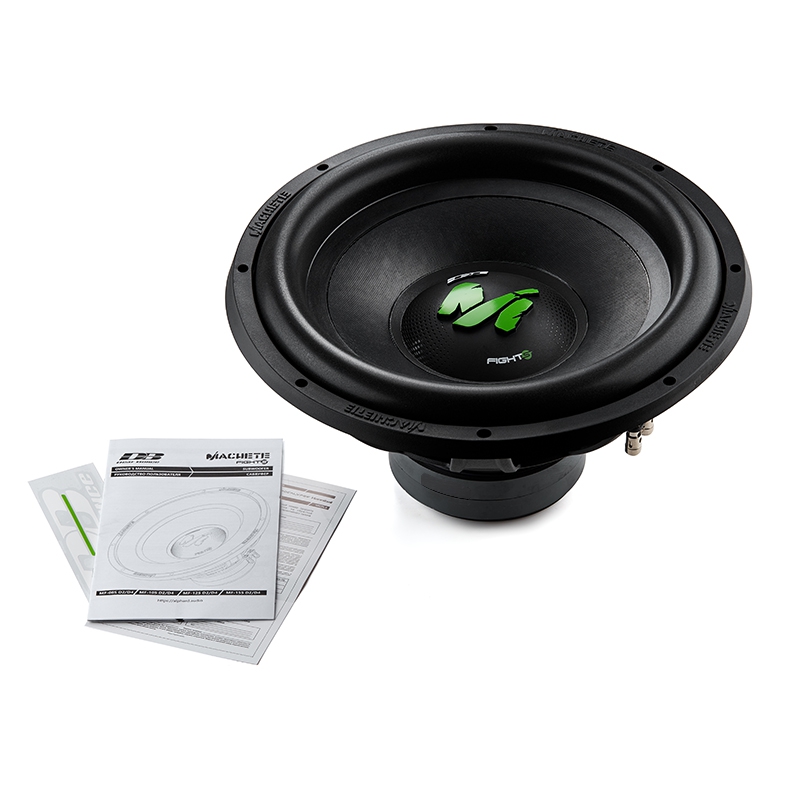

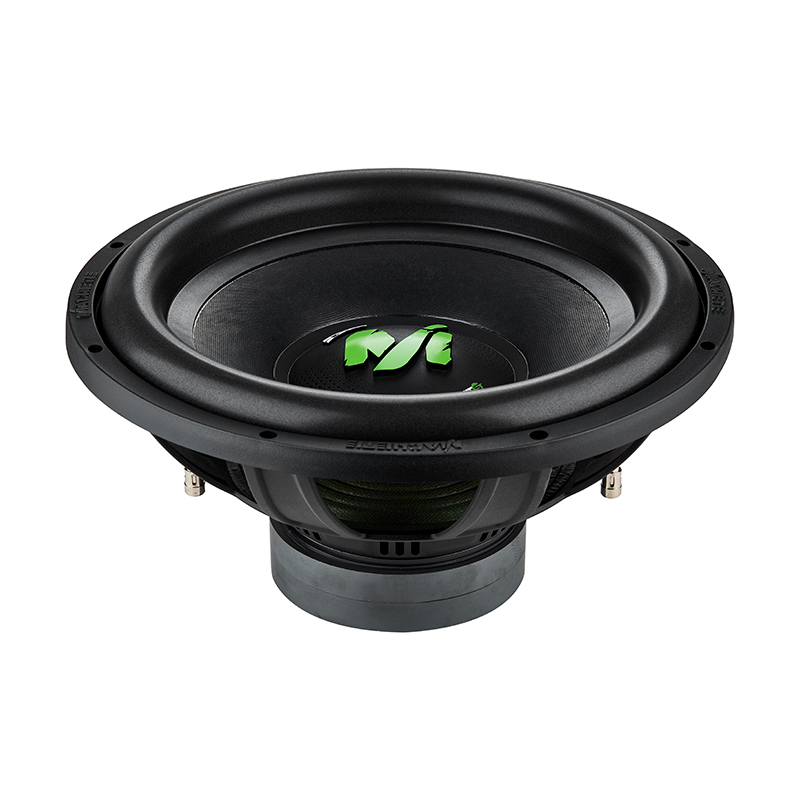

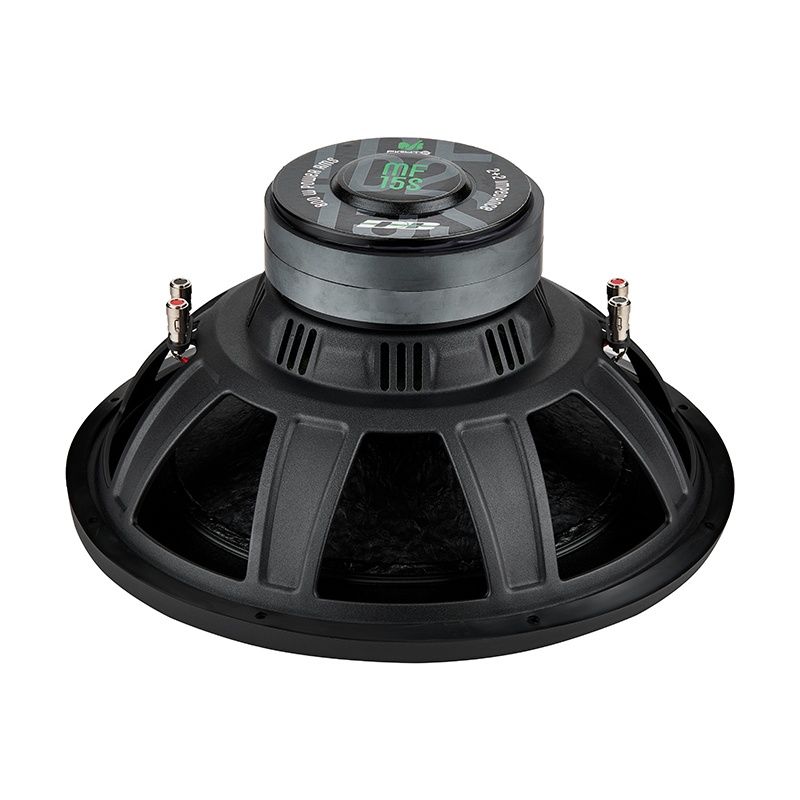

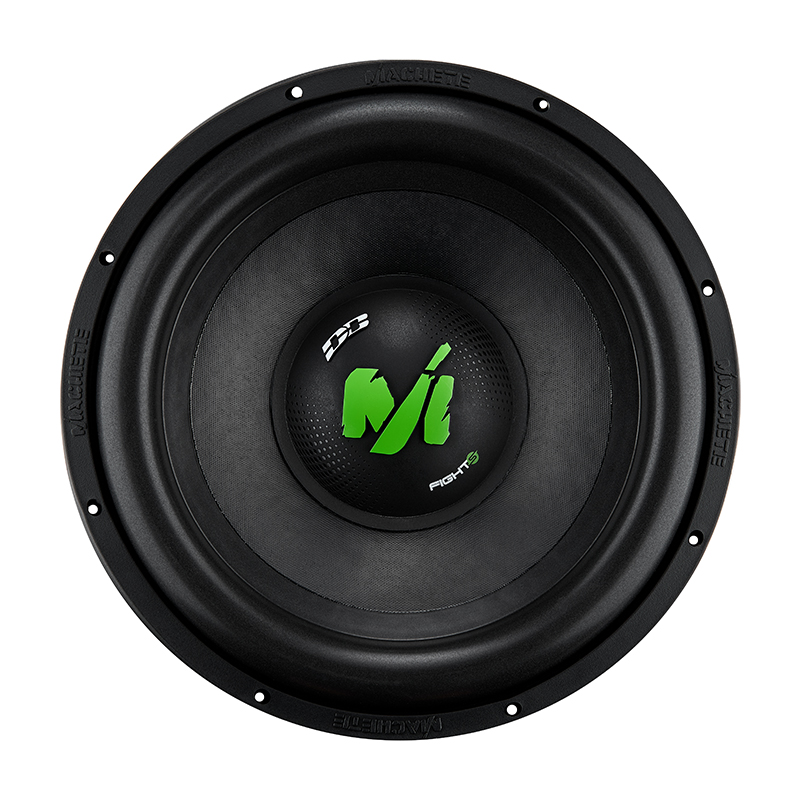

Machete MF-15S D2/D4
| Model | MF-15SD2 / MF-15SD4 |
| Type | Subwoofer |
| Size | 15 inch |
| Voice coil size | 2.50 inch |
| Cone | Paper |
| Magnet | Ferrite |
| Voice coil wire | Copper |
| Surround | Foam |
| RMS Power | 800 W |
| MAX Power | 1600 W |
| Frame | Steel |
| Impedance | 2+2 / 4+4 Ohm |
| SPL | 85.80 / 85.10 dB |
| Fs | 28.00 / 29.00 Hz |
| Qts | 0.68 / 0.79 |
| BL | 16.10 / 21.50 |
| Vas | 86.20 / 78.60 L |
| Xmeh | 28.00 / 28.00 mm |
| Xmax | 14.00 / 14.00 mm |
| Mounting depth | 7.06 inch (179.3 mm) |
| Cut-out dimension | 13.94 inch (354.0 mm) |
| Gross weight | 20.17 lb (9.15 kg) |
