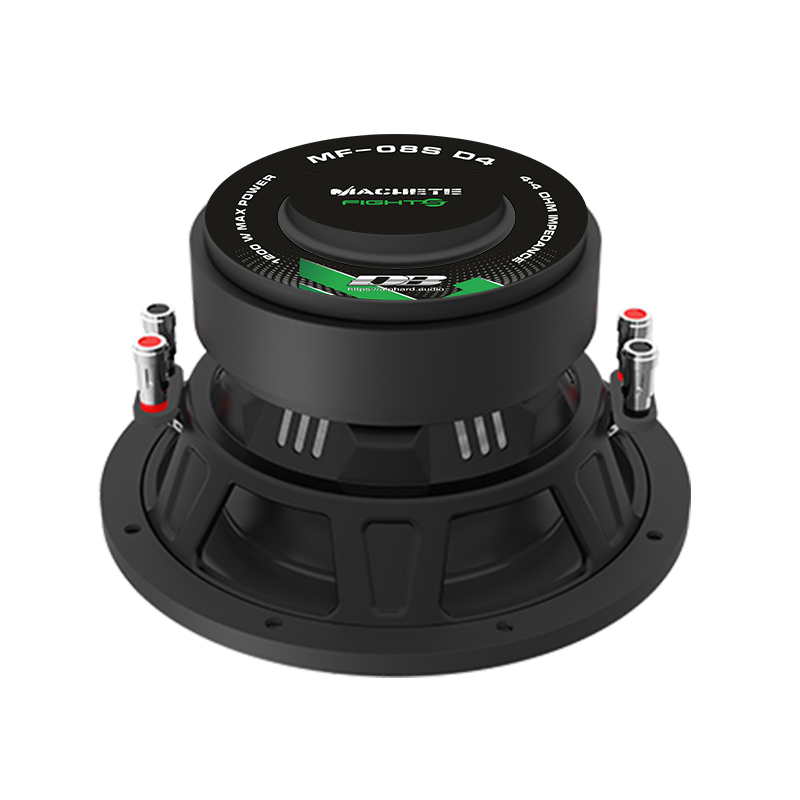

Model | MF-08S D2 / MF-08S D4 |
Type | Subwoofer |
Size | 8 inch |
Voice coil size | 2.00 inch |
Cone | Paper |
Magnet | Ferrite |
Voice coil wire | Copper |
Surround | Foam |
RMS Power | 600 W |
MAX Power | 1200 W |
Frame | Steel |
Impedance | 2+2 / 4+4 Ohm |
SPL | 84.00 / 84.30 dB |
Fs | 48.00 / 48.20 Hz |
Qts | 0.41 / 0.42 |
BL | 15.10 / 15.40 |
Vas | 7.50 / 7.90 L |
Xmeh | 24.00 / 24.00 mm |
Xmax | 12.00 / 12.00 mm |
Mounting depth | 4.56 inch (115.8 mm) |
Cut-out dimension | 7.20 inch (183.0 mm) |
Gross weight | 2.20 lb (1.00 kg) |
