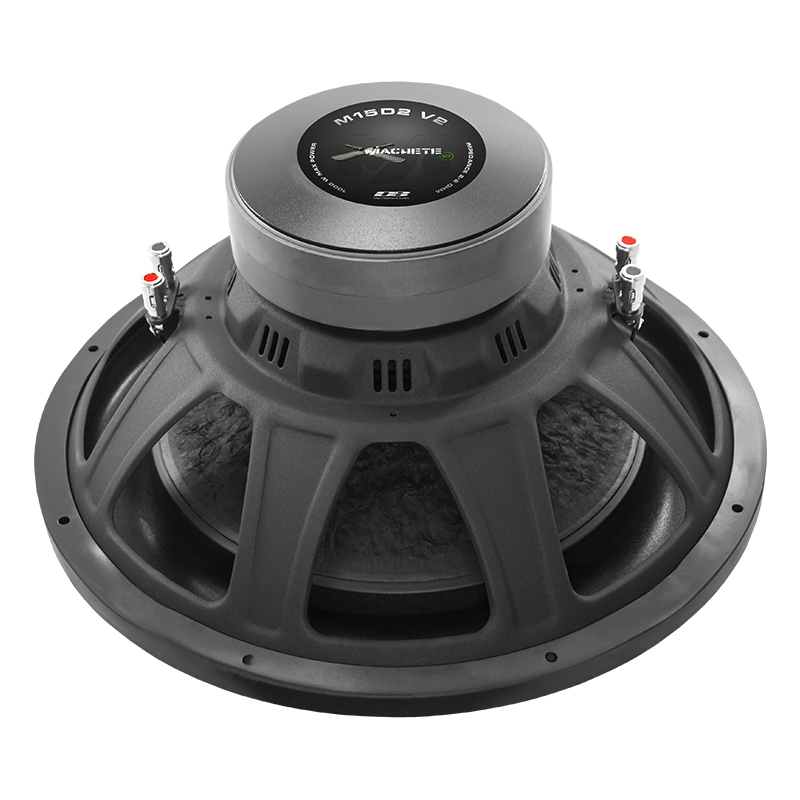

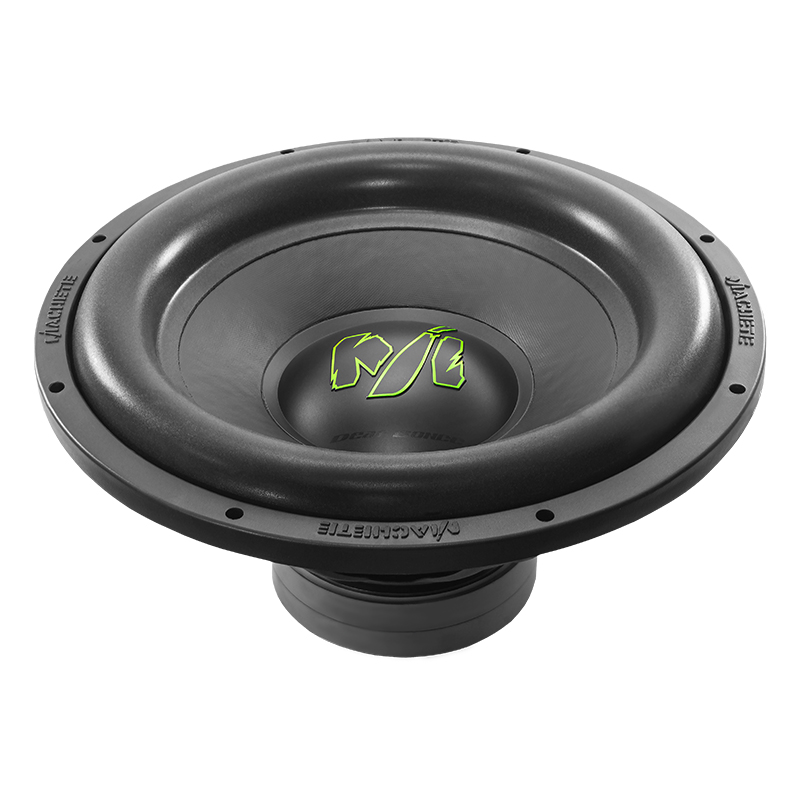

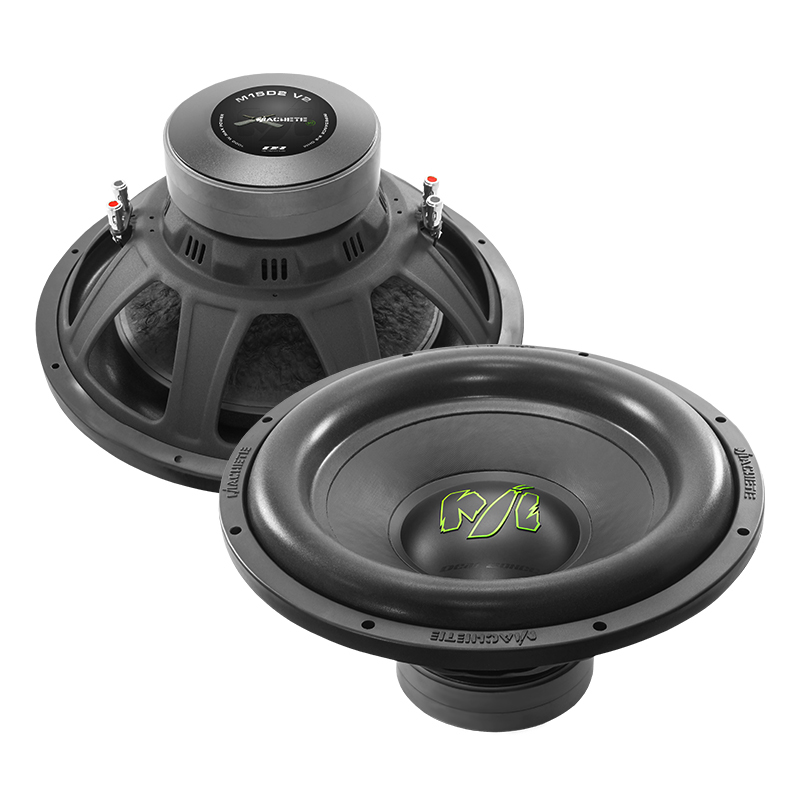

Machete M15 v2 D2/D4

Modifications:
Ω 4+4 Ohm Ω 2+2 Ohm

Series: Machete


Specifications

ModelM15 v2 D4 / M15 v2 D2
TypeSubwoofer
Size15 inch
Voice coil size2.50 inch
ConePaper
MagnetFerrite
Voice coil wireCopper
SurroundFoam
RMS Power500 W
MAX Power1000 W
FrameSteel
Impedance4+4 / 2+2 Ohm
SPL89.20 / 89.20 dB
Fs29.50 / 29.50 Hz
Qts0.54 / 0.54
BL25.26 / 25.26
Re1.8+1.8 / 1.8+1.8
Vas80.42 / 80.42 L
Xmeh28.00 28.00 / 28.00 mm
Xmax14.00 / 14.00 mm
Mounting depth inch (176.2 mm)
Cut-out dimension inch (345.5 mm)
Gross weight lb (9.40 kg)
