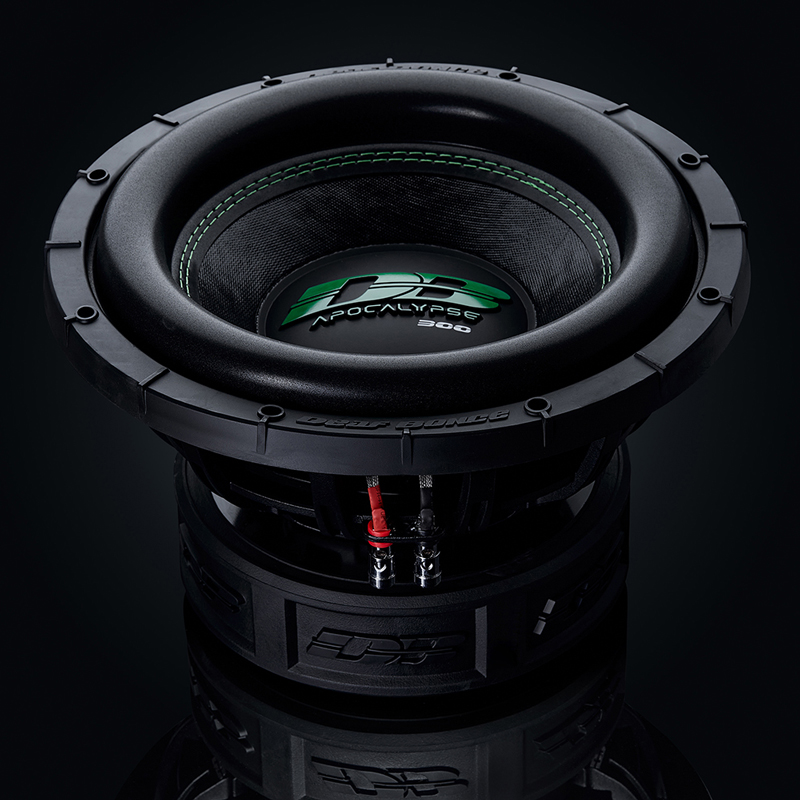

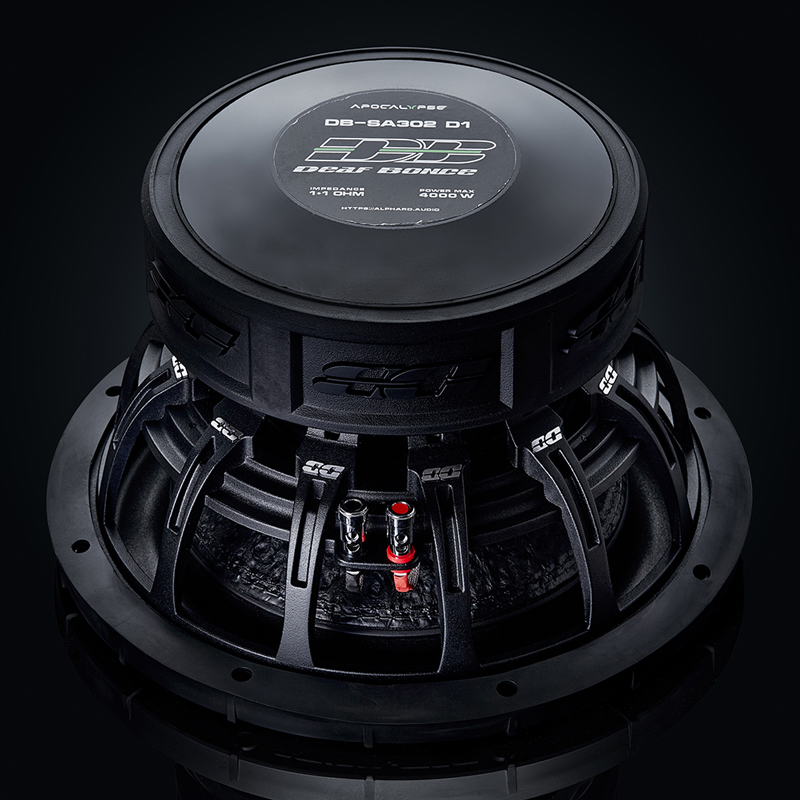

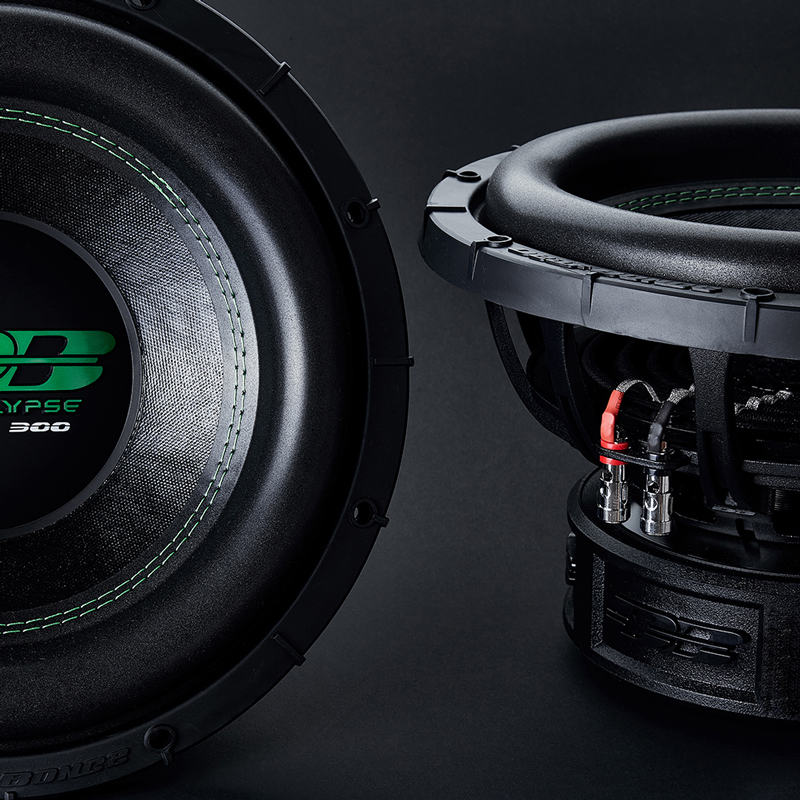

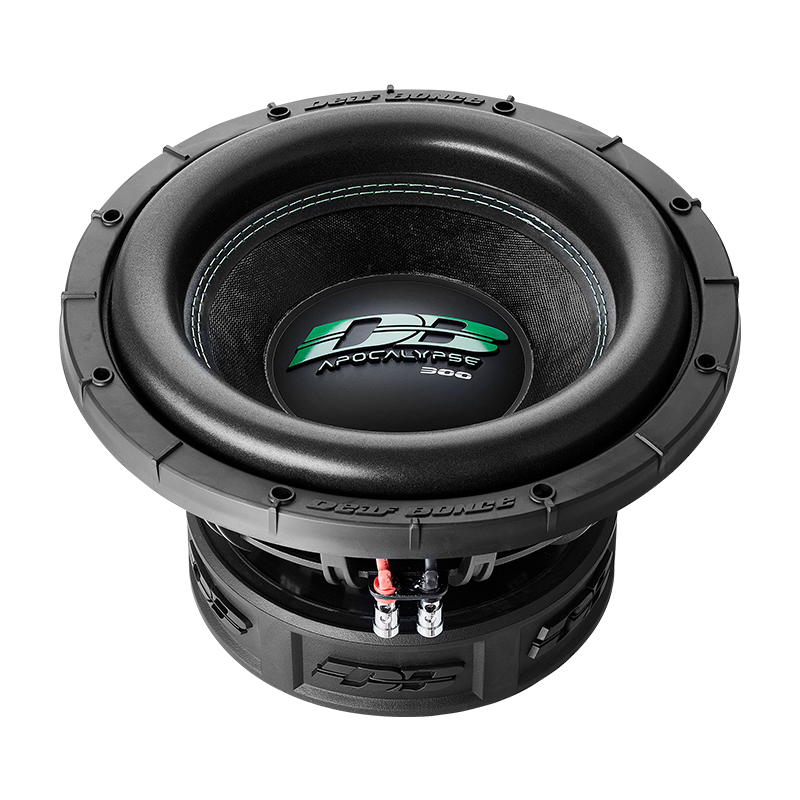

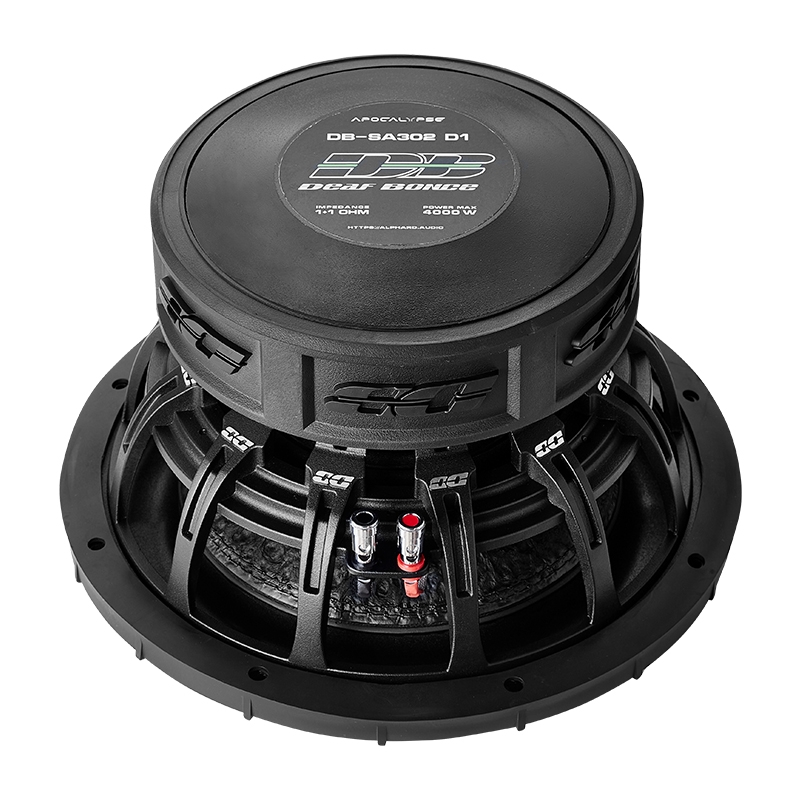

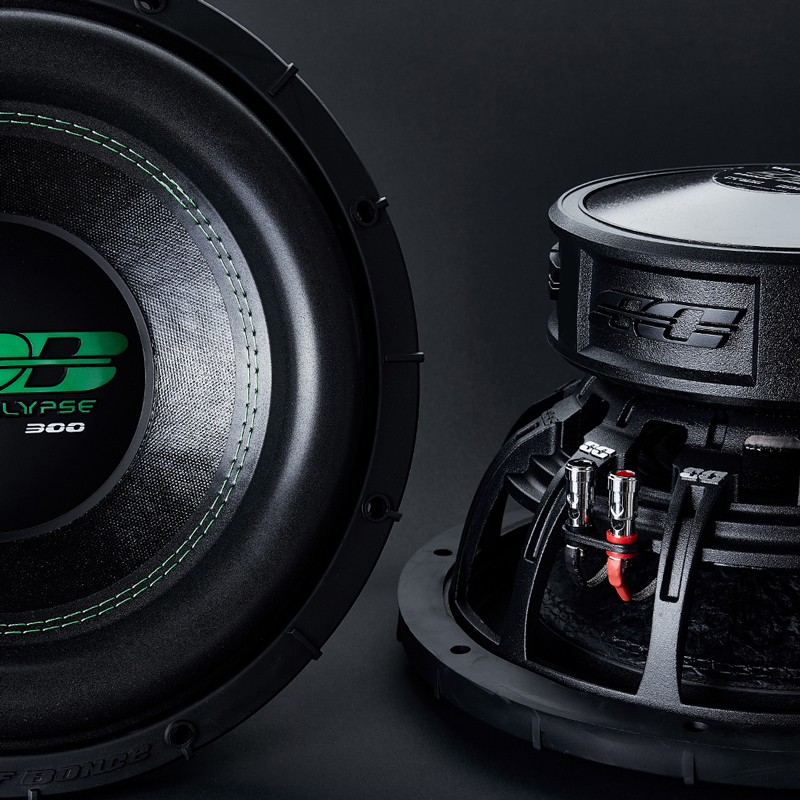

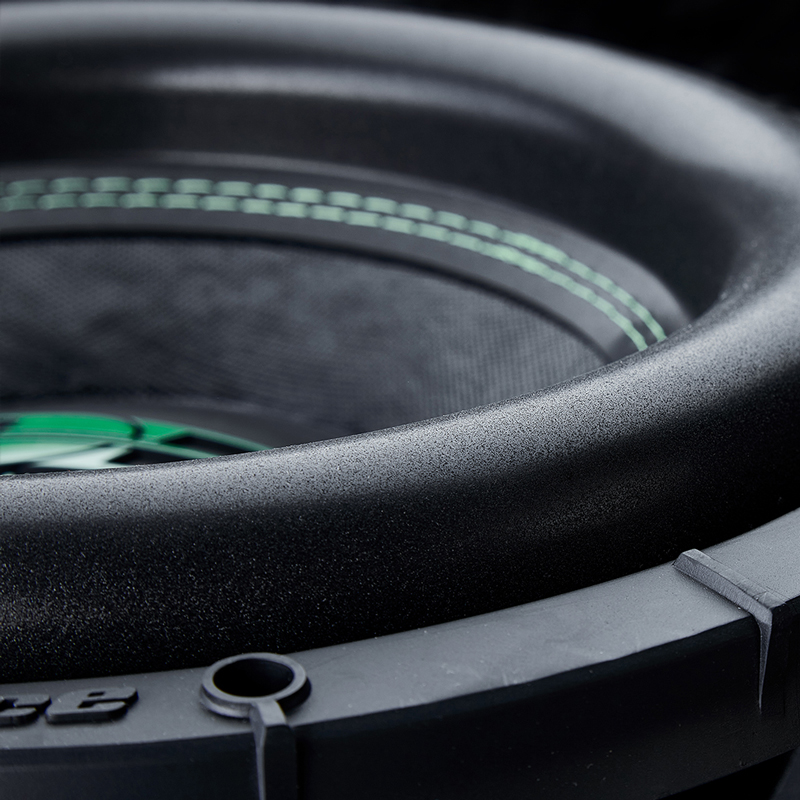

Apocalypse DB-SA302 D1/D2

Modifications:
Ω 1+1 Ohm Ω 2+2 Ohm

Series: Apocalypse


Specifications

ModelDB-SA302D1 / DB-SA302D2
TypeSubwoofer
Size12 inch
Voice coil size3.00 inch

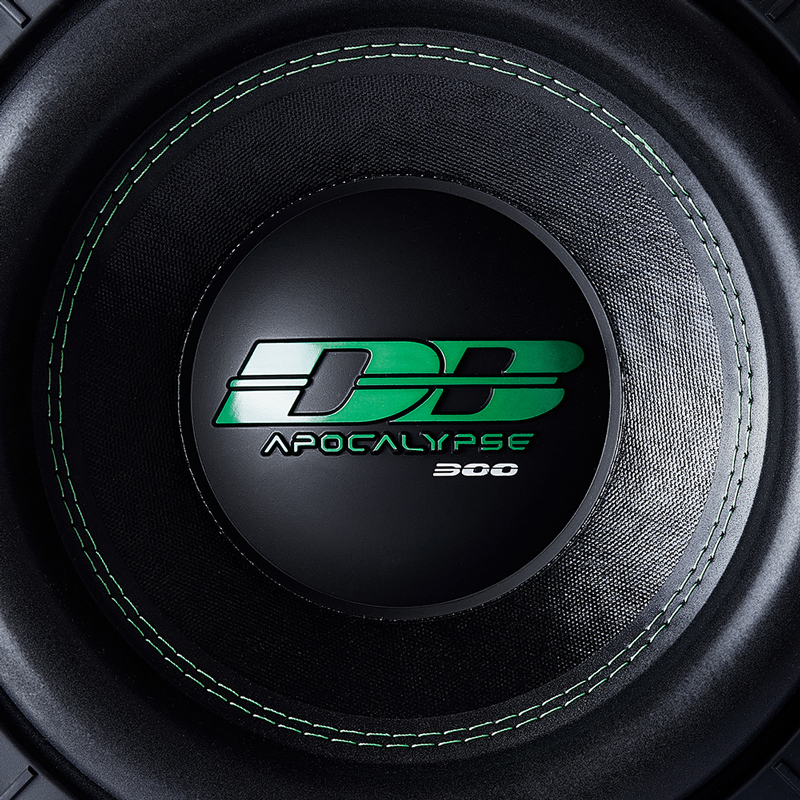

ConePaper
MagnetFerrite
Voice coil wireCCAW
SurroundFoam
RMS Power2000 W
MAX Power4000 W

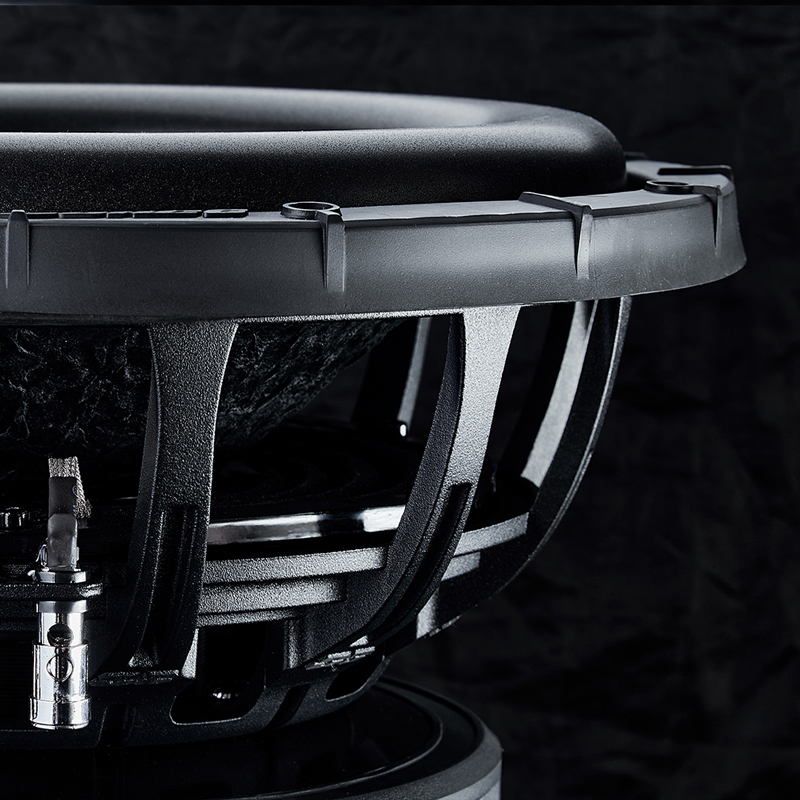

FrameAlu
Impedance1+1 / 2+2 Ohm
SPL86.30 / 86.70 dB
Fs35.16 / 35.67 Hz
Qts0.30 / 0.34
BL20.04 / 20.84
Vas21.00 / 24.00 L
Xmax18.00 / 18.00 mm
Mounting depth179.5 inch
Cut-out dimension279.3 inch
Gross weight lb (16.40 kg)
