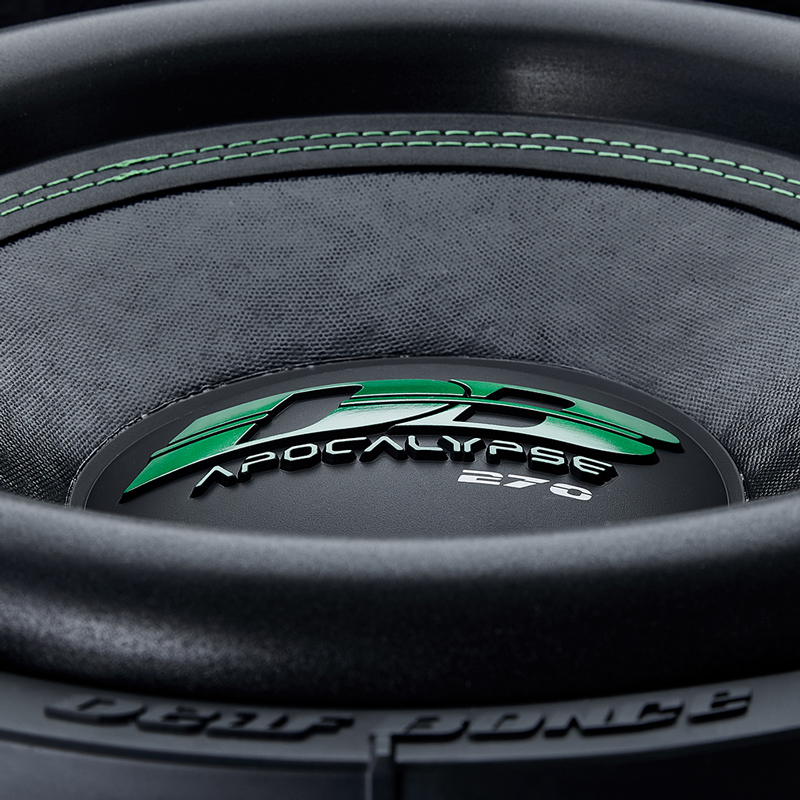

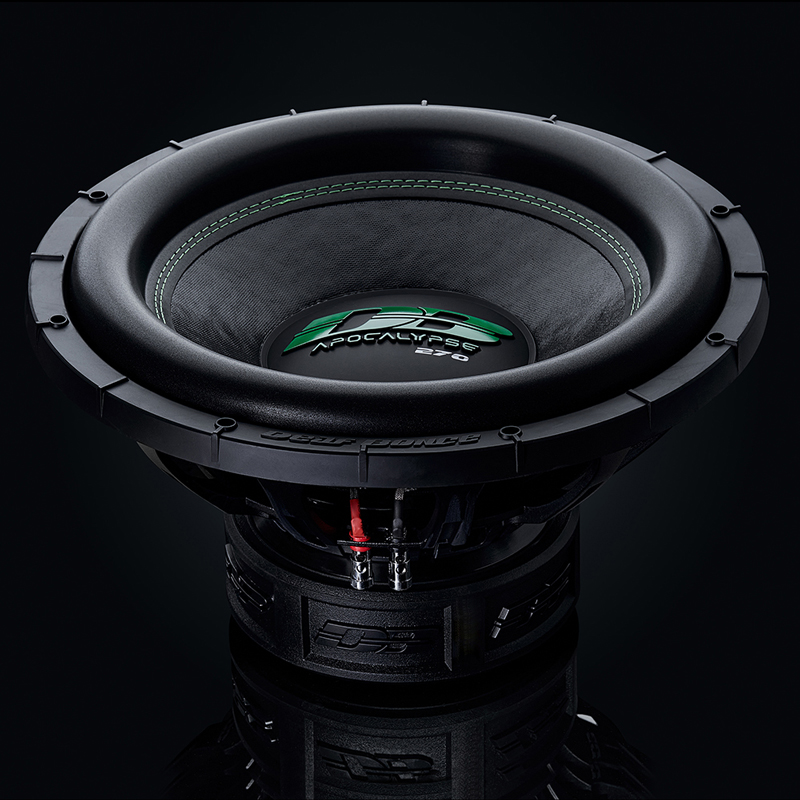

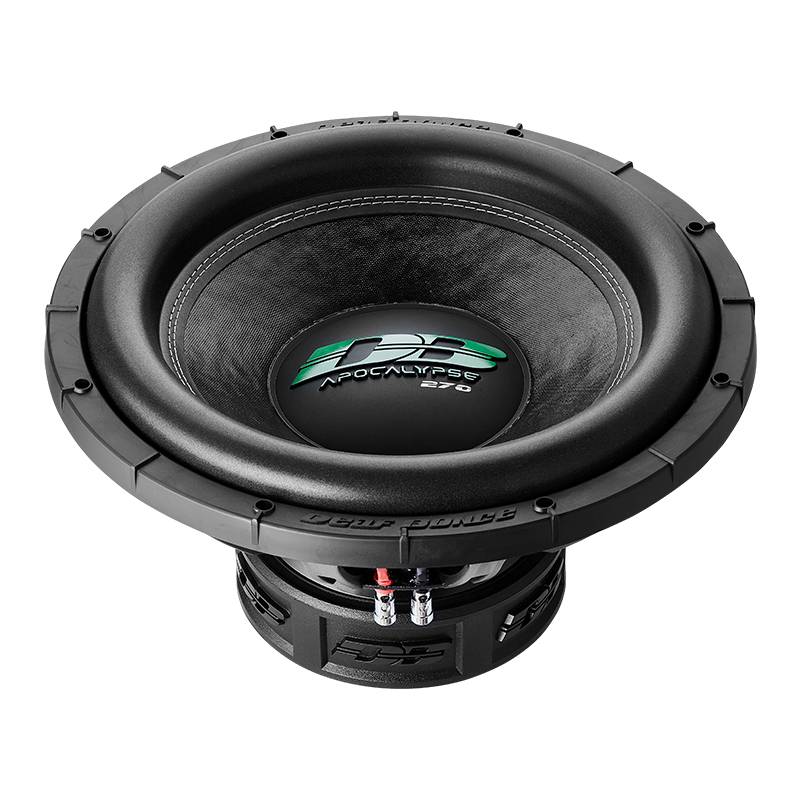

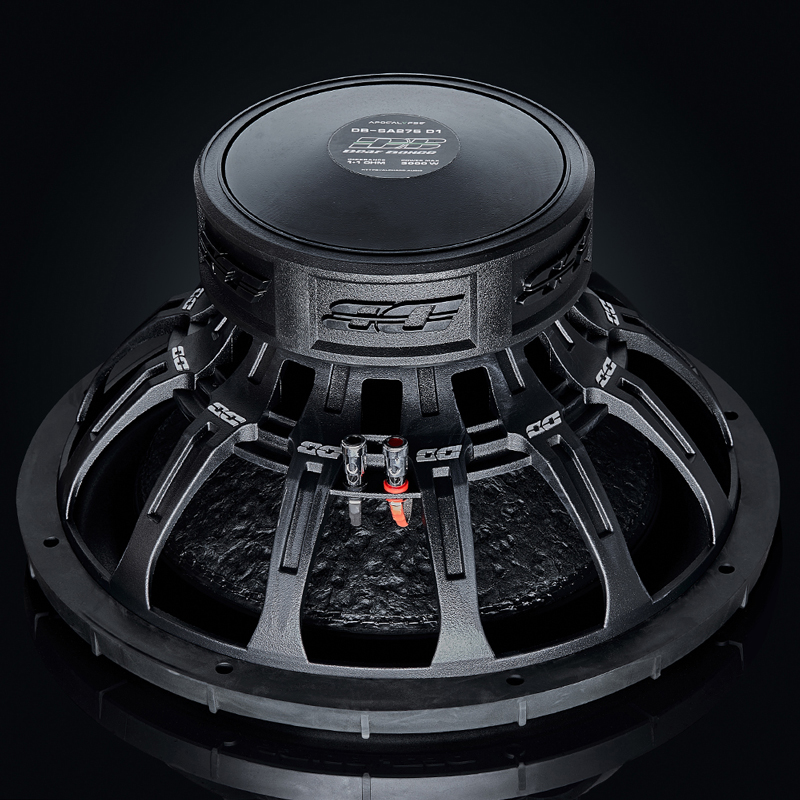

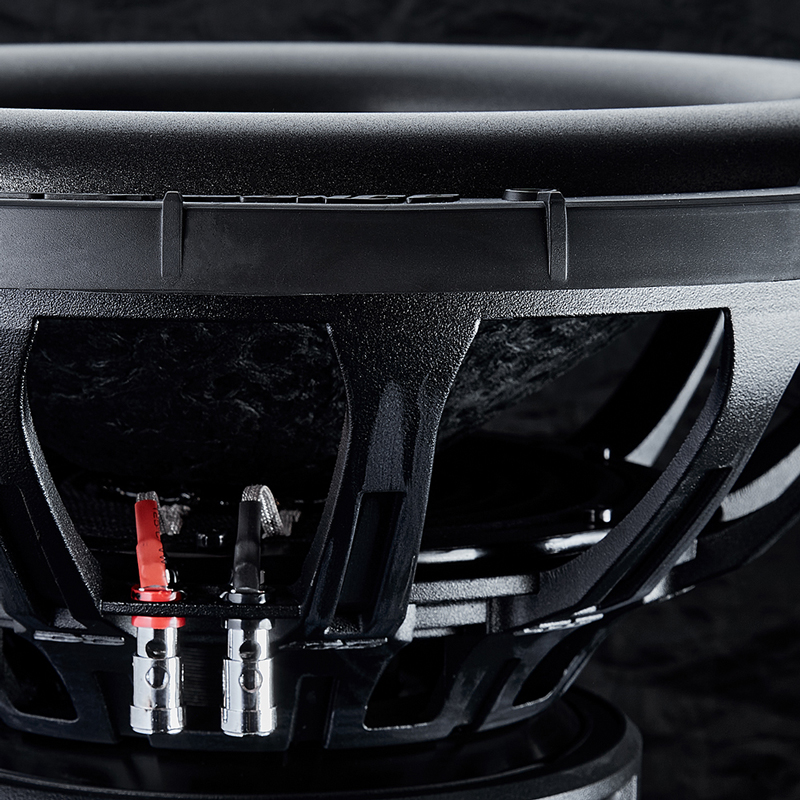

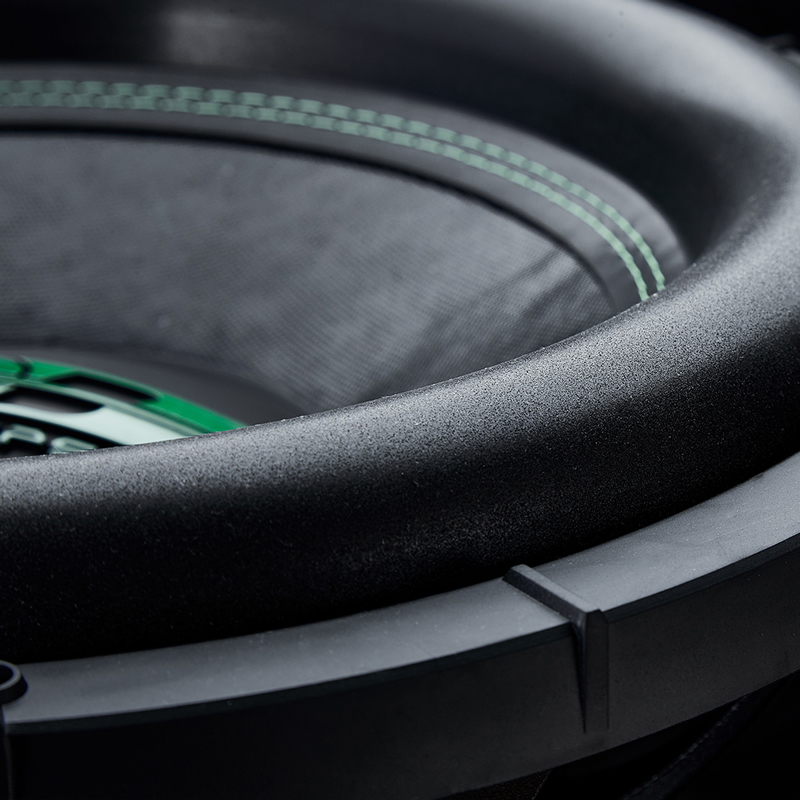

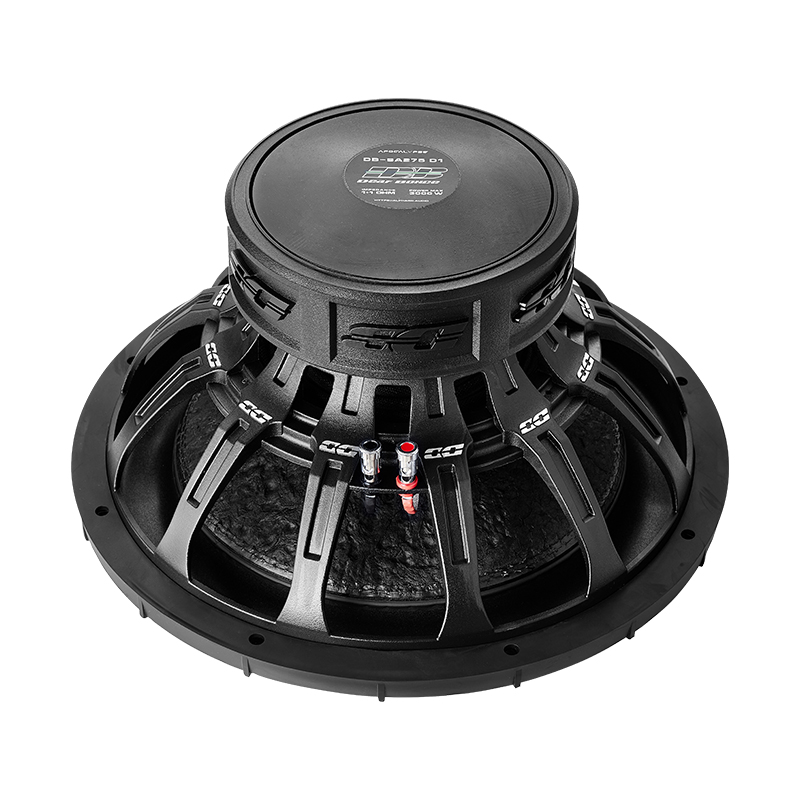

Apocalypse DB-SA275 D1/D2

Modifications:
Ω 1+1 Ohm Ω 2+2 Ohm

Series: Apocalypse


Specifications

ModelDB-SA275D1 / DB-SA275D2
TypeSubwoofer
Size15 inch
Voice coil size2.75 inch
ConePaper
MagnetFerrite
Voice coil wireCCAW
SurroundFoam
RMS Power1500 W
MAX Power3000 W
FrameAlu
Impedance1+1 / 2+2 Ohm
SPL88.00 / 88.20 dB
Fs29.70 / 31.30 Hz
Qts0.42 / 0.46
BL18.60 / 19.10
Vas62.00 / 64.00 L
Xmeh36.00 / 36.00 mm
Xmax18.00 / 18.00 mm
Mounting depth7.85 inch (199.5 mm)
Cut-out dimension14.09 inch (358.0 mm)
Gross weight33.51 lb (15.20 kg)
