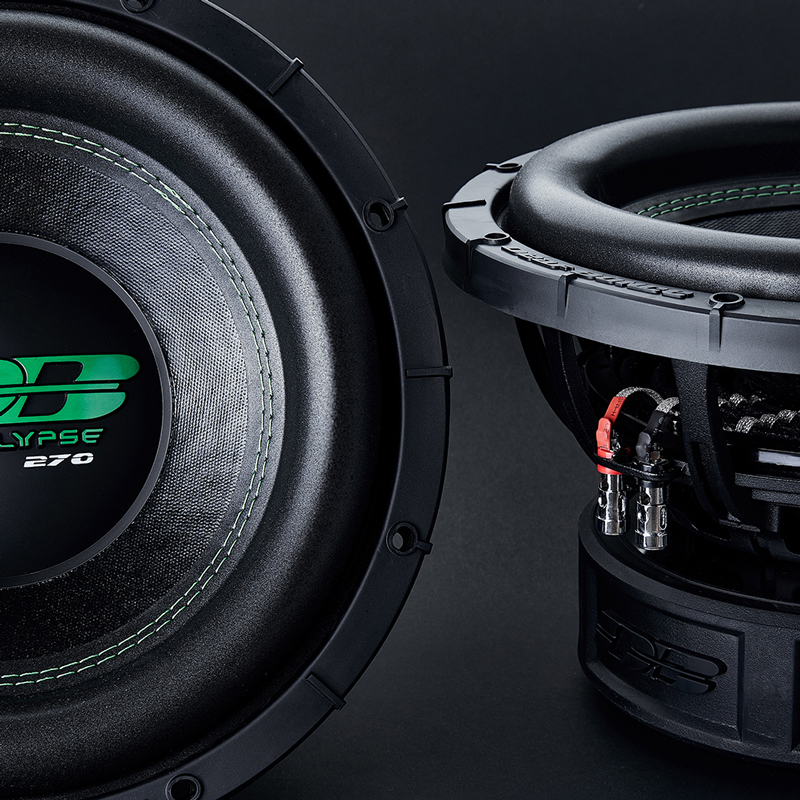

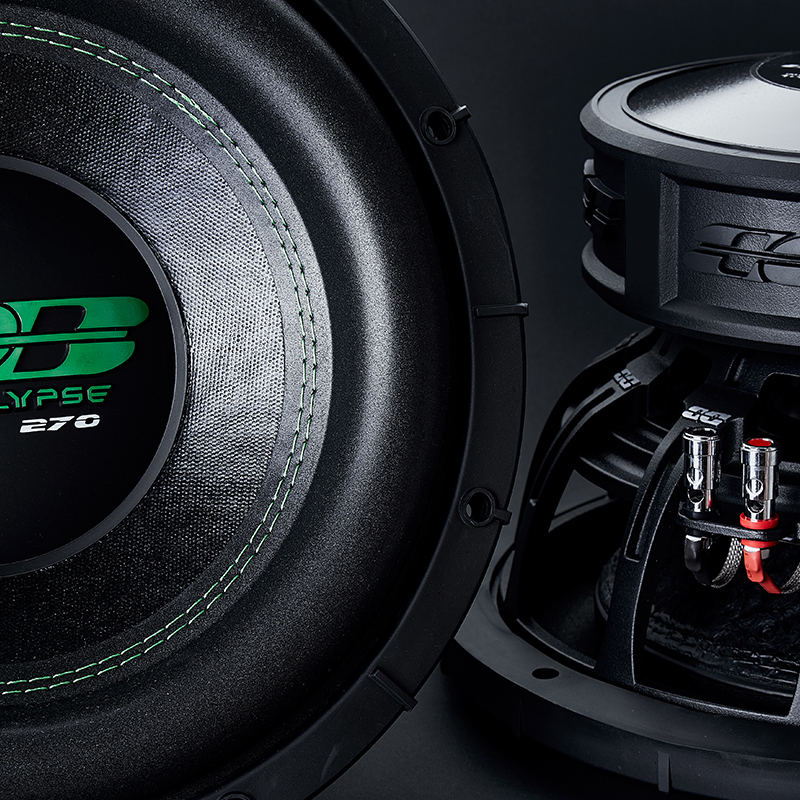

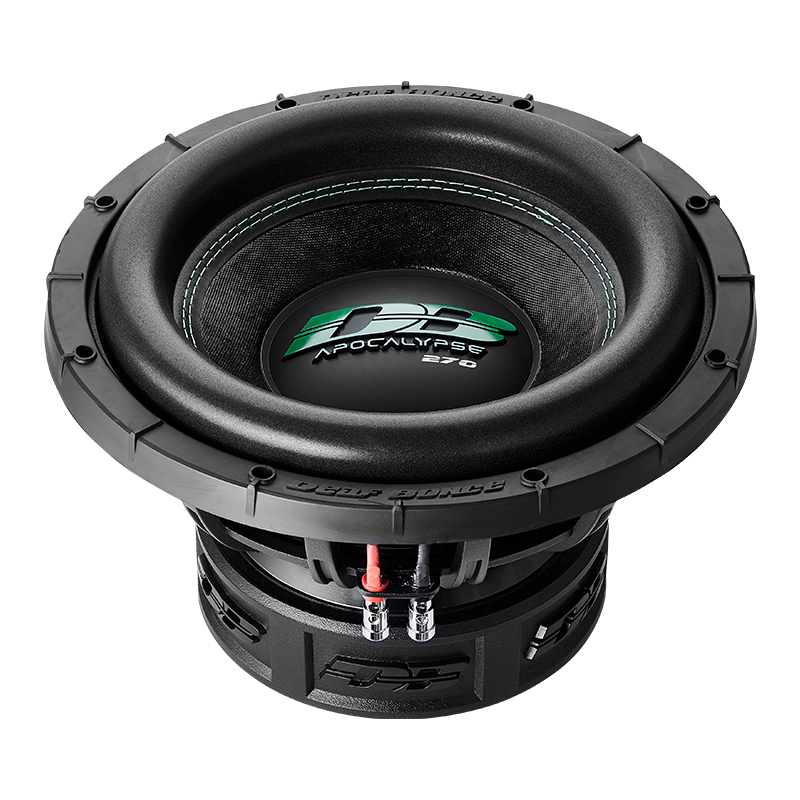

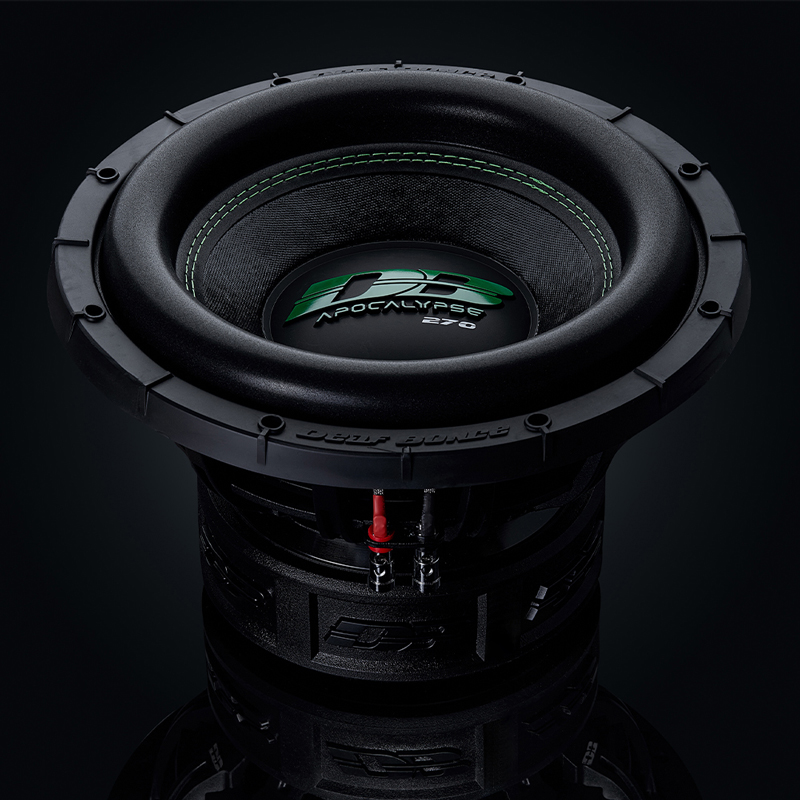

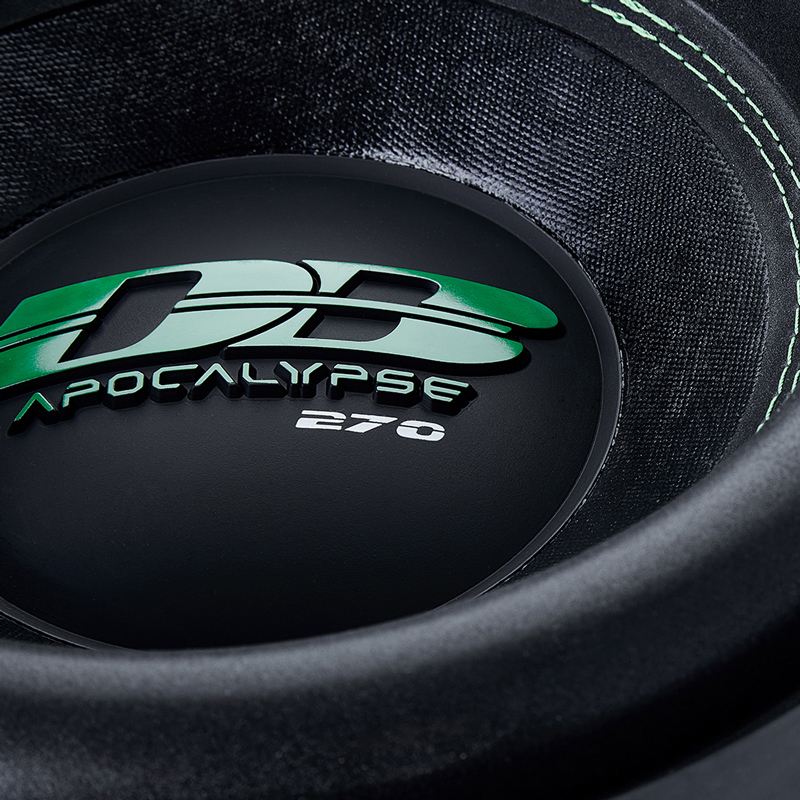

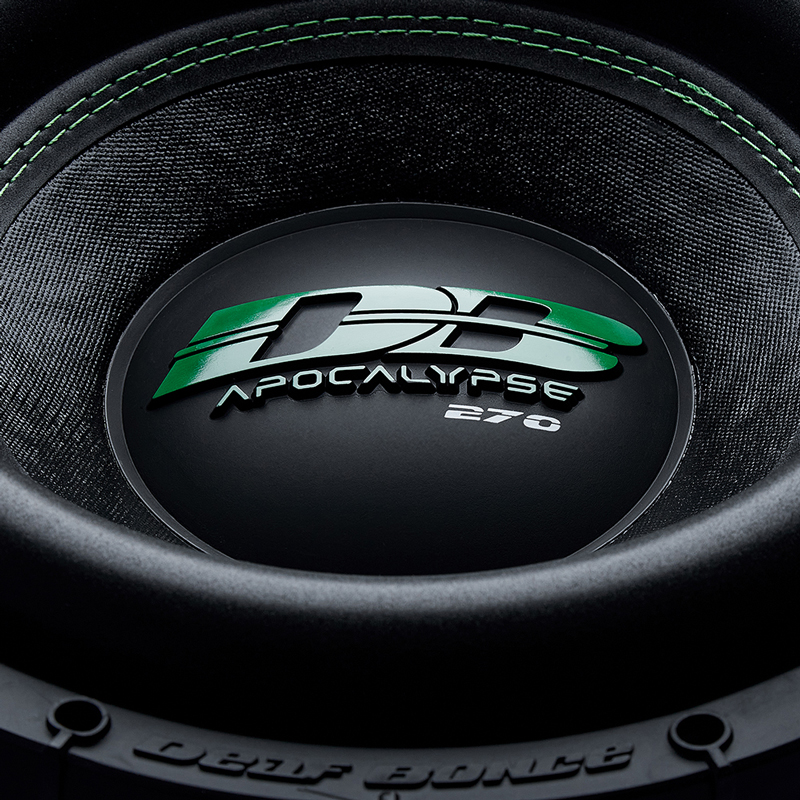

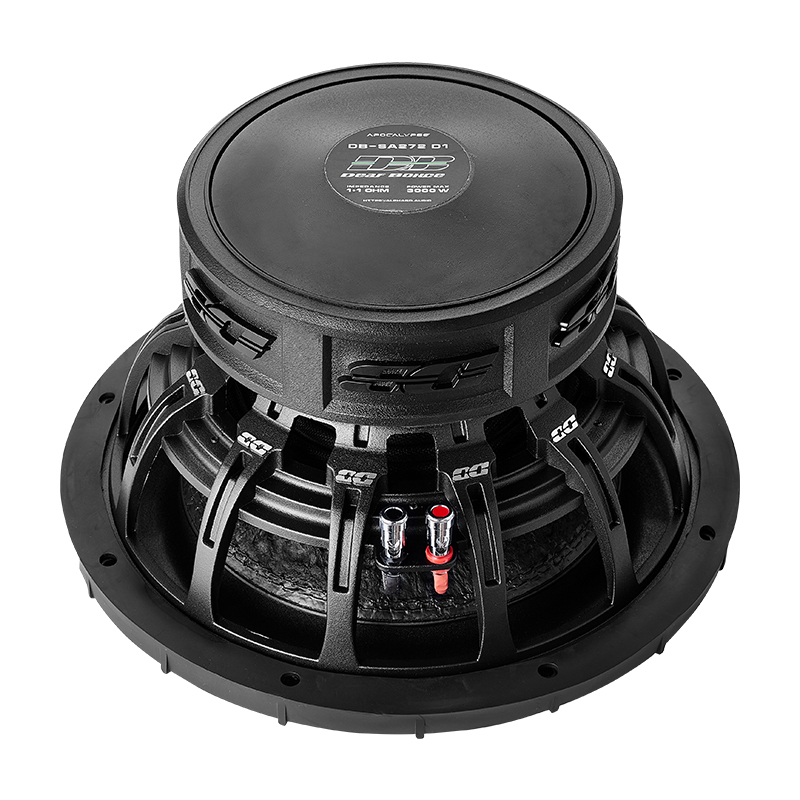

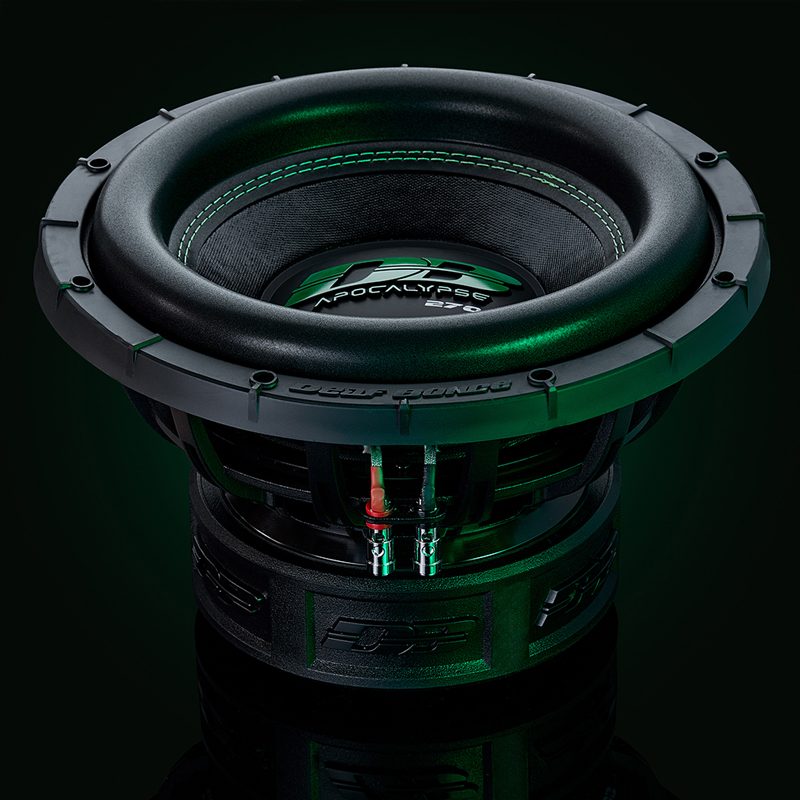

Apocalypse DB-SA272 D1/D2

Modifications:
Ω 1+1 Ohm Ω 2+2 Ohm

Series: Apocalypse


Specifications

ModelDB-SA272D1 / DB-SA272D2
TypeSubwoofer
Size12 inch
Voice coil size2.75 inch

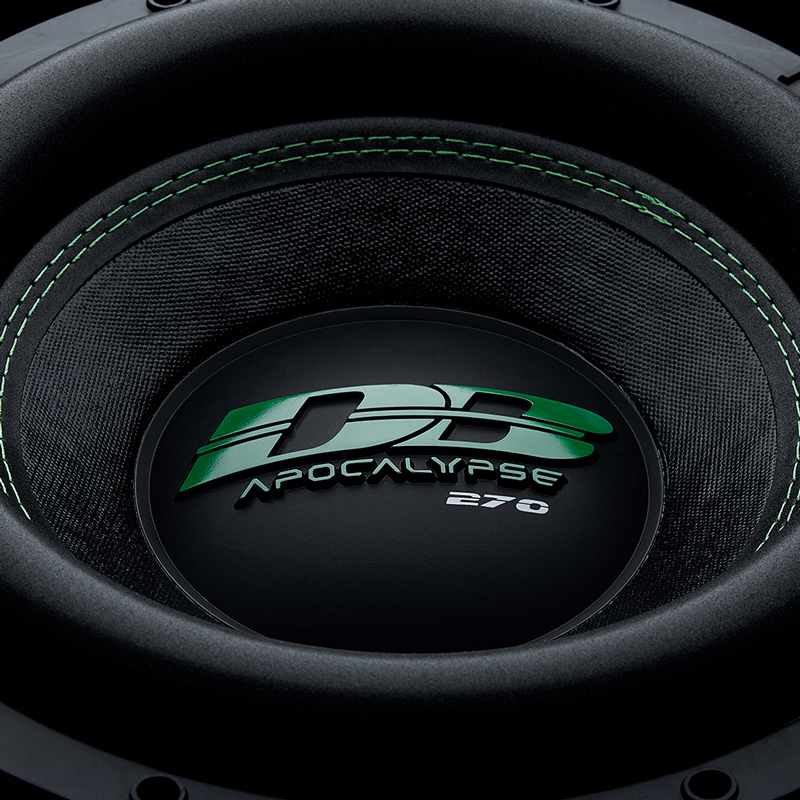

ConePaper

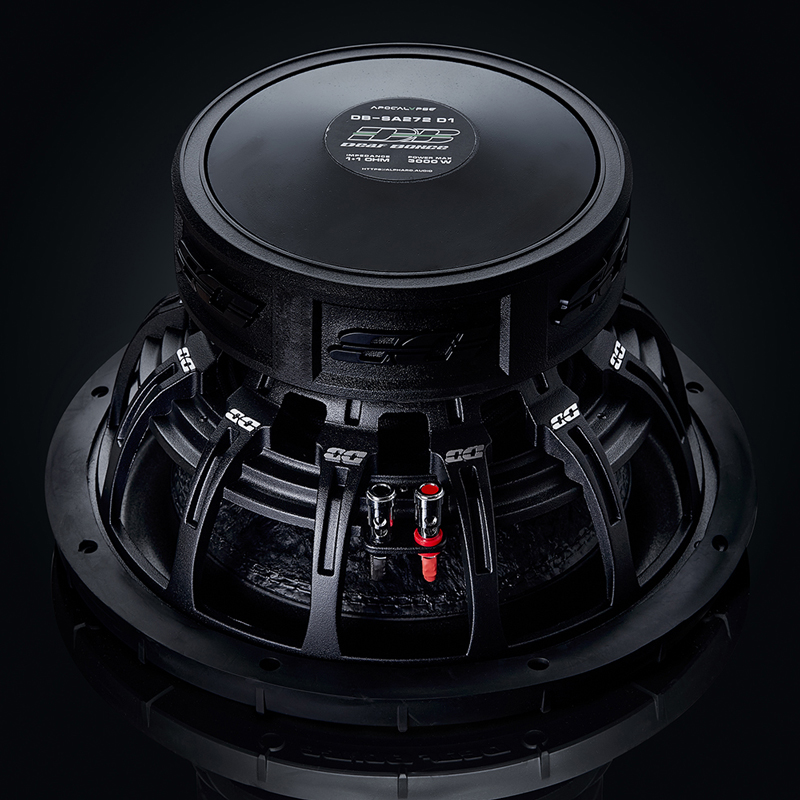

MagnetFerrite
Voice coil wireCCAW

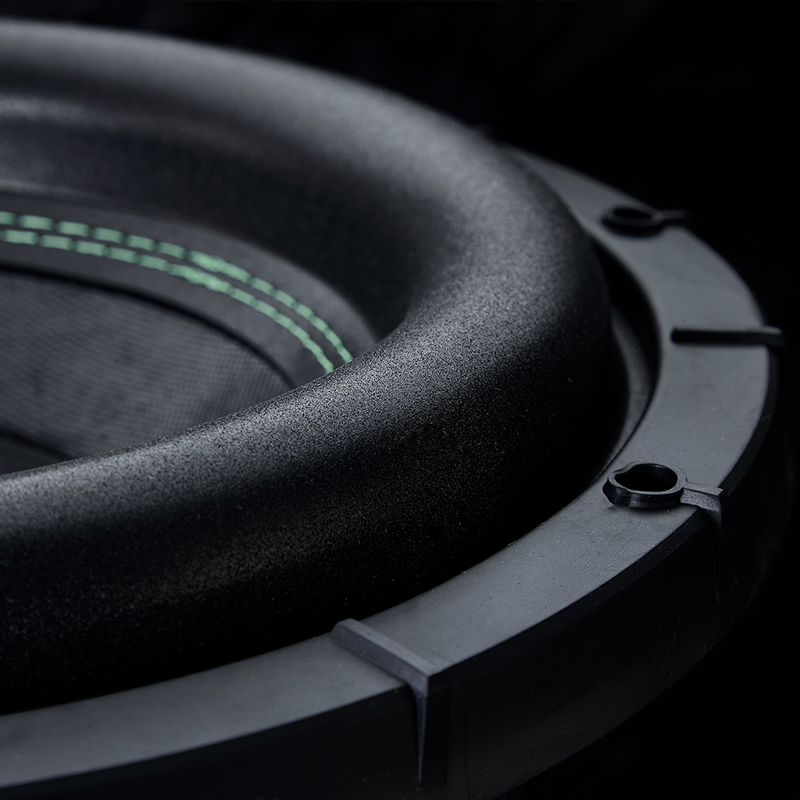

SurroundFoam
RMS Power1500 W
MAX Power3000 W

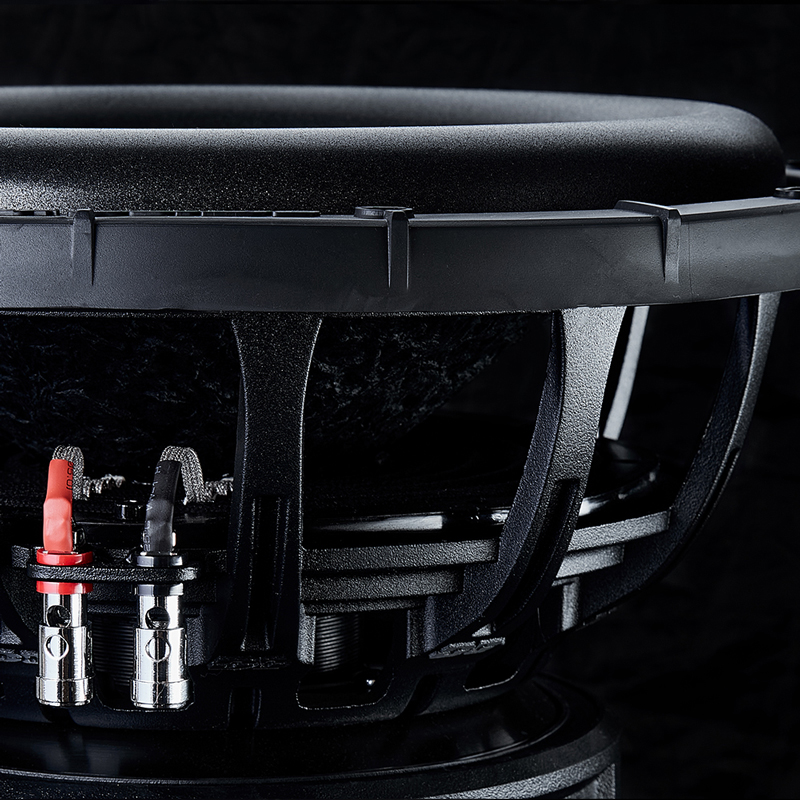

FrameAlu
Impedance1+1 / 2+2 Ohm
SPL86.20 / 86.20 dB
Fs31.12 / 31.12 Hz
Qts0.36 / 0.36
BL20.83 / 20.83
Vas30.74 / 30.74 L
Xmeh36.00 / 36.00 mm
Xmax18.00 / 18.00 mm
Mounting depth7.07 inch (179.5 mm)
Cut-out dimension11.00 inch (279.3 mm)
Gross weight30.64 lb (13.90 kg)
