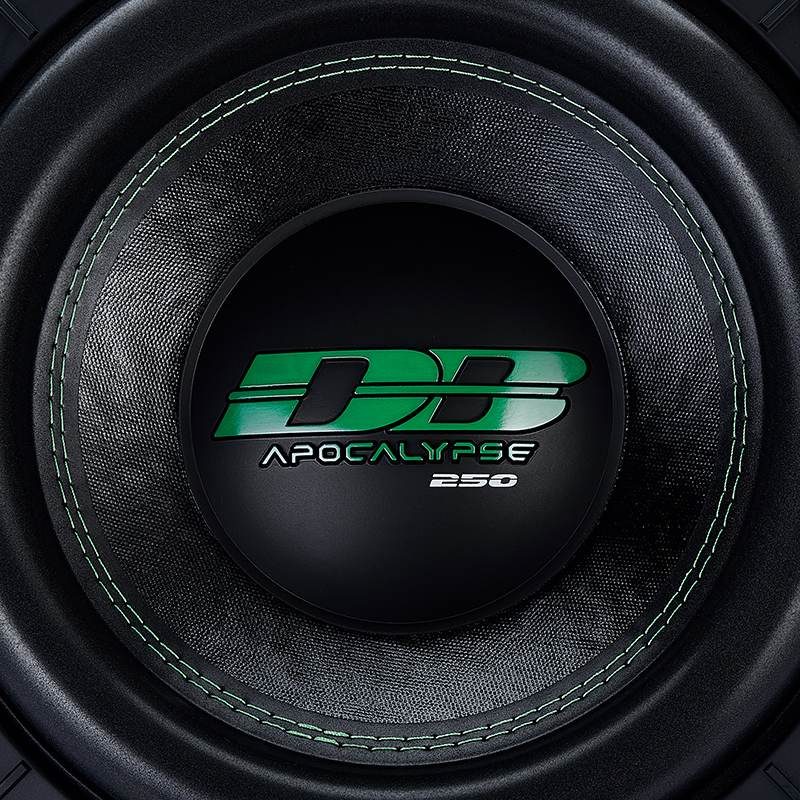

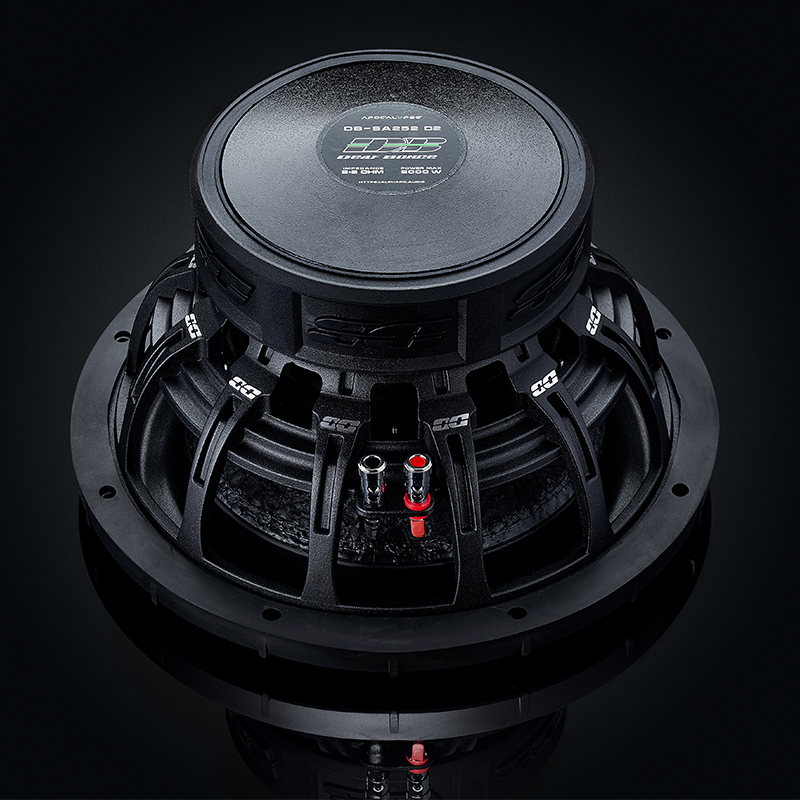

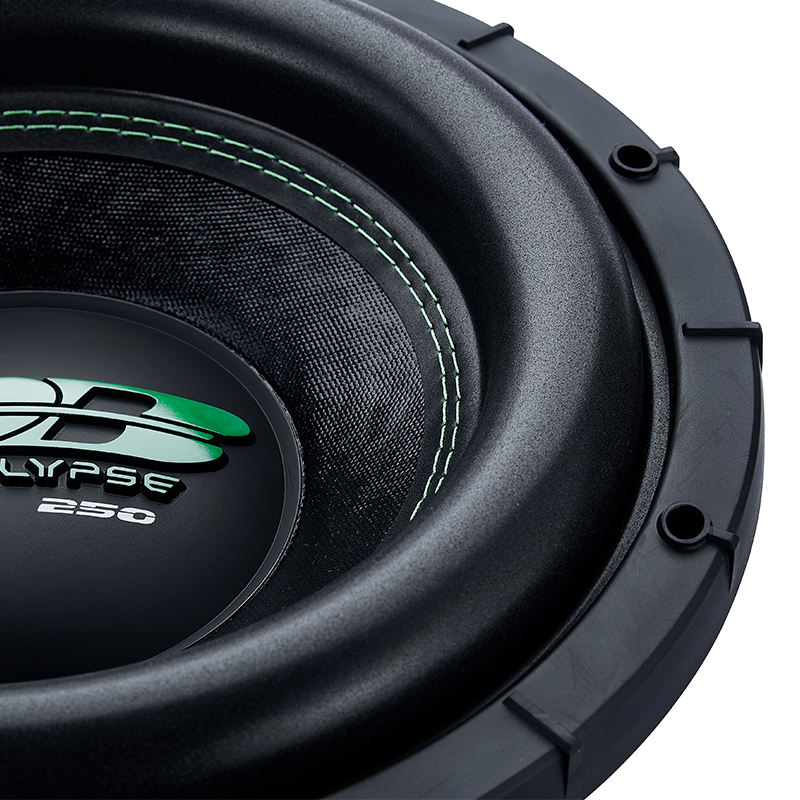

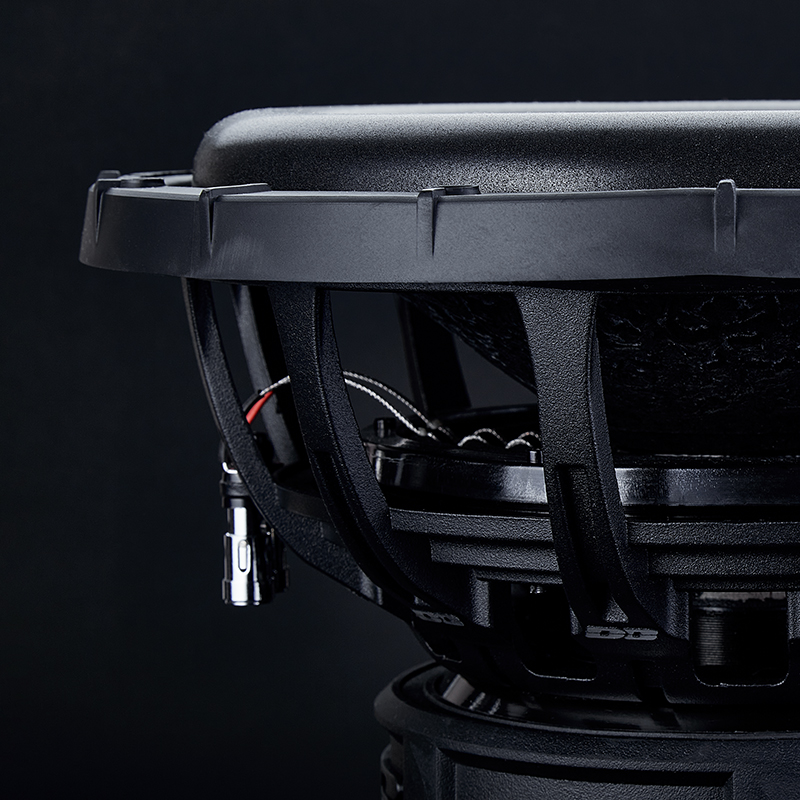

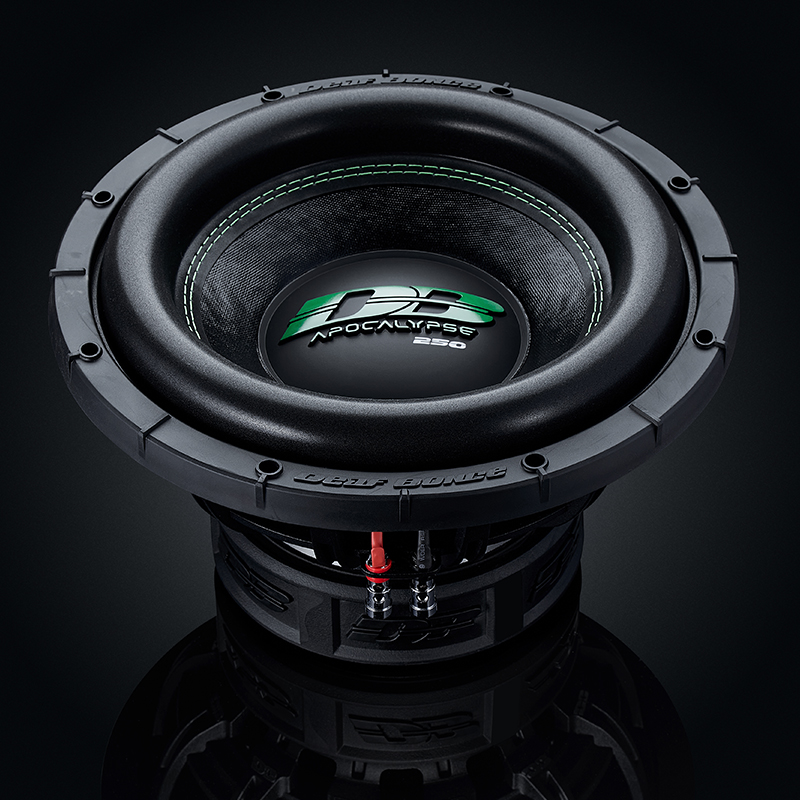

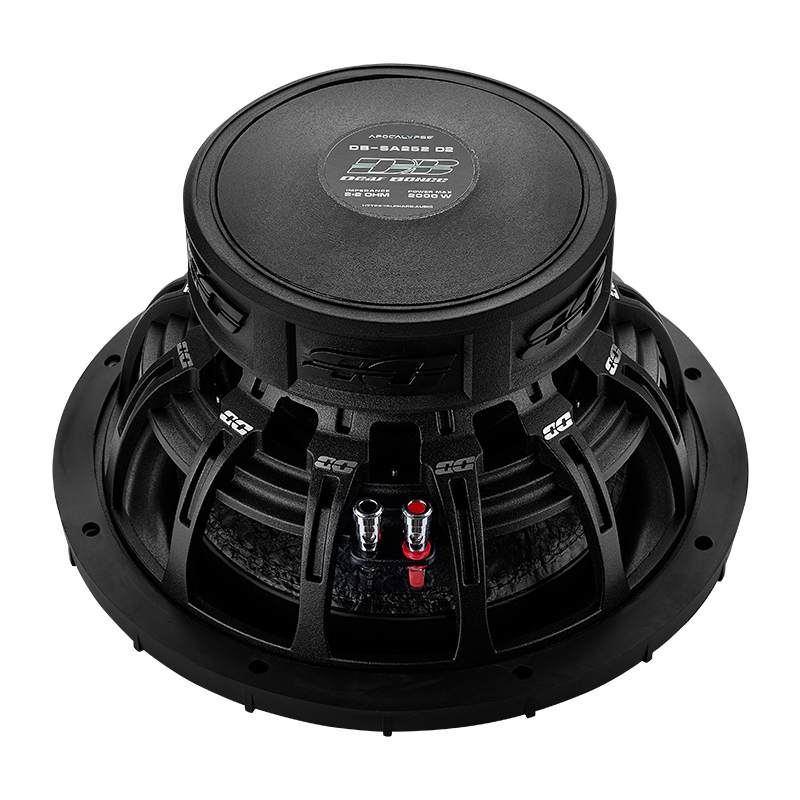

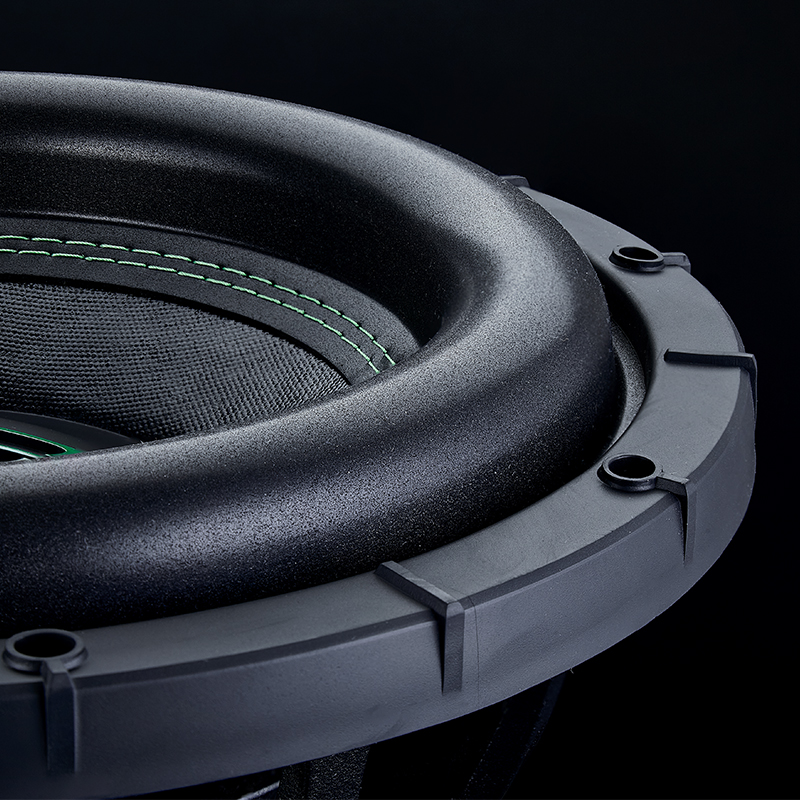

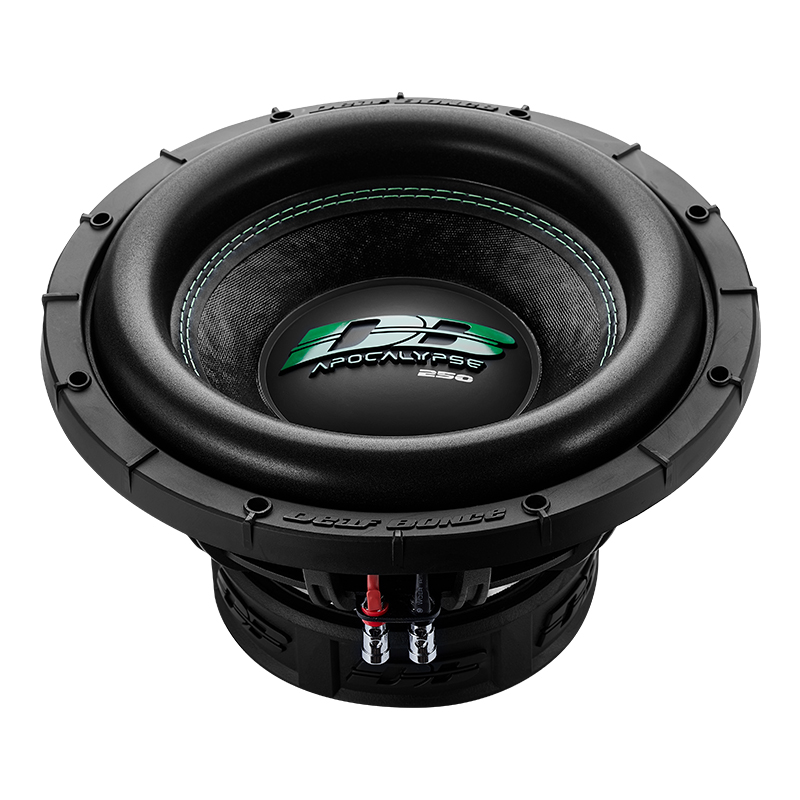

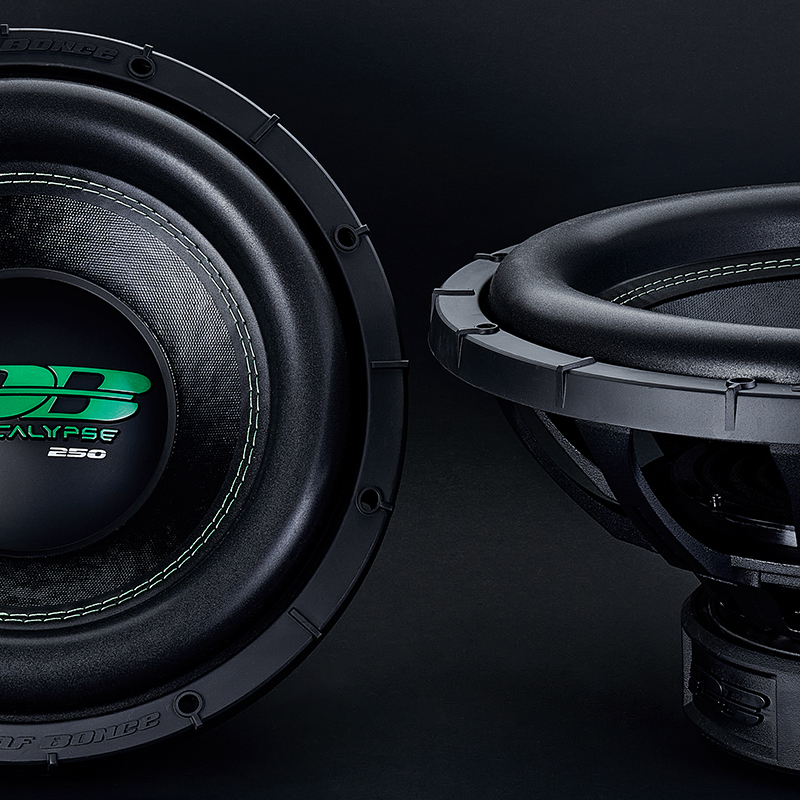

Apocalypse DB-SA252 D1/D2

Modifications:
Ω 2+2 Ohm Ω 1+1 Ohm

Series: Apocalypse


Specifications

ModelDB-SA252D2 / DB-SA252D1
TypeSubwoofer
Size12 inch
Voice coil size2.50 inch
ConePaper
MagnetFerrite
Voice coil wireCopper
SurroundFoam
RMS Power1000 W
MAX Power2000 W
FrameAlu
Impedance2+2 / 1+1 Ohm
SPL85.00 / 84.70 dB
Fs32.57 / 32.10 Hz
Qts0.38 / 0.36
BL23.22 / 22.74
Vas24.91 / 24.72 L
Xmeh30.00 / 30.00 mm
Xmax15.00 / 15.00 mm
Mounting depth6.61 inch (167.9 mm)
Cut-out dimension11.00 inch (279.3 mm)
Gross weight26.57 lb (12.05 kg)
