Series: Apocalypse

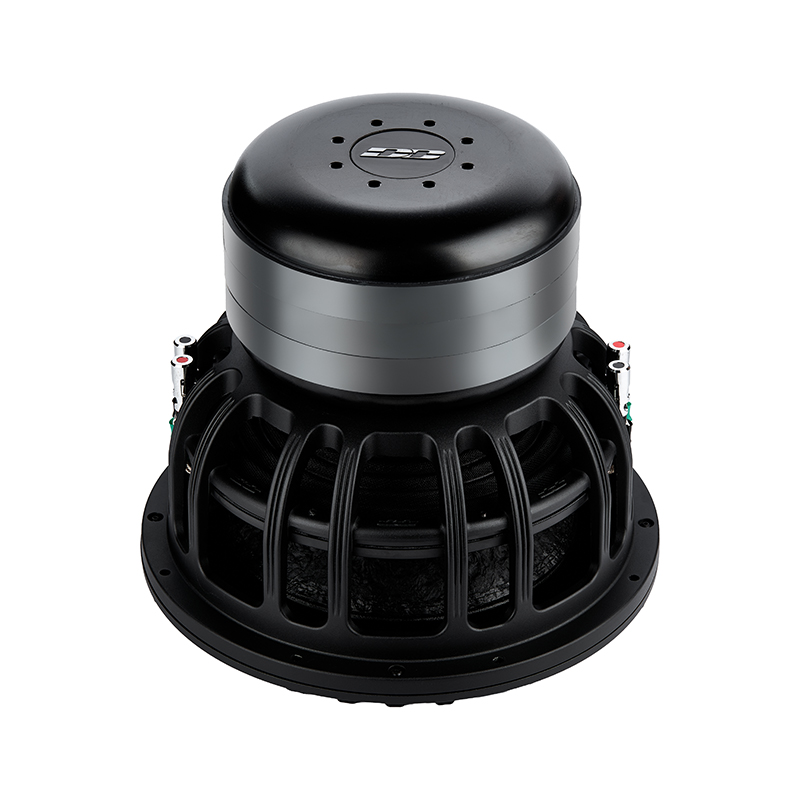

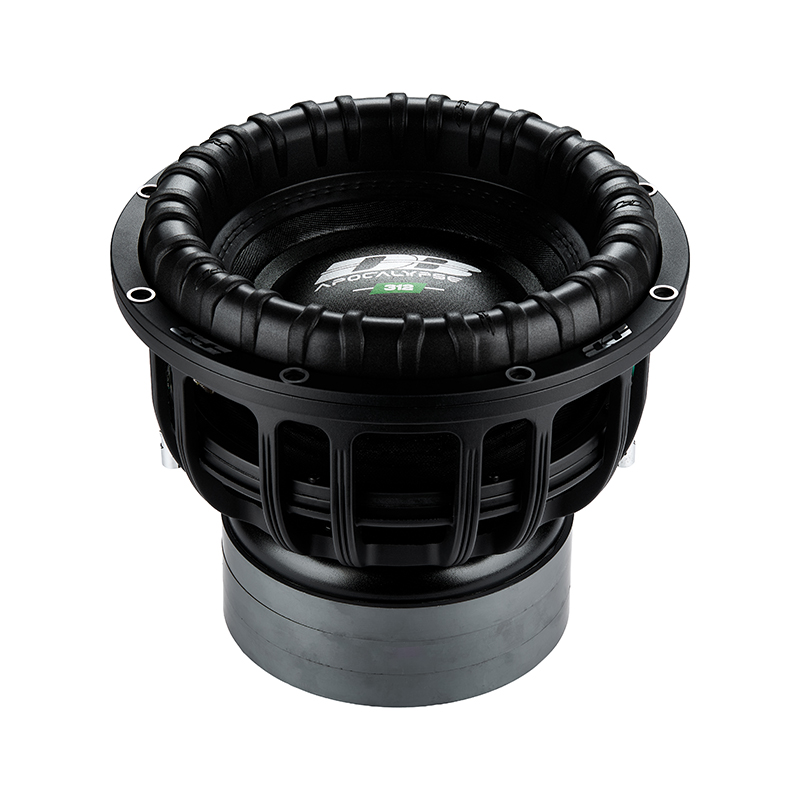

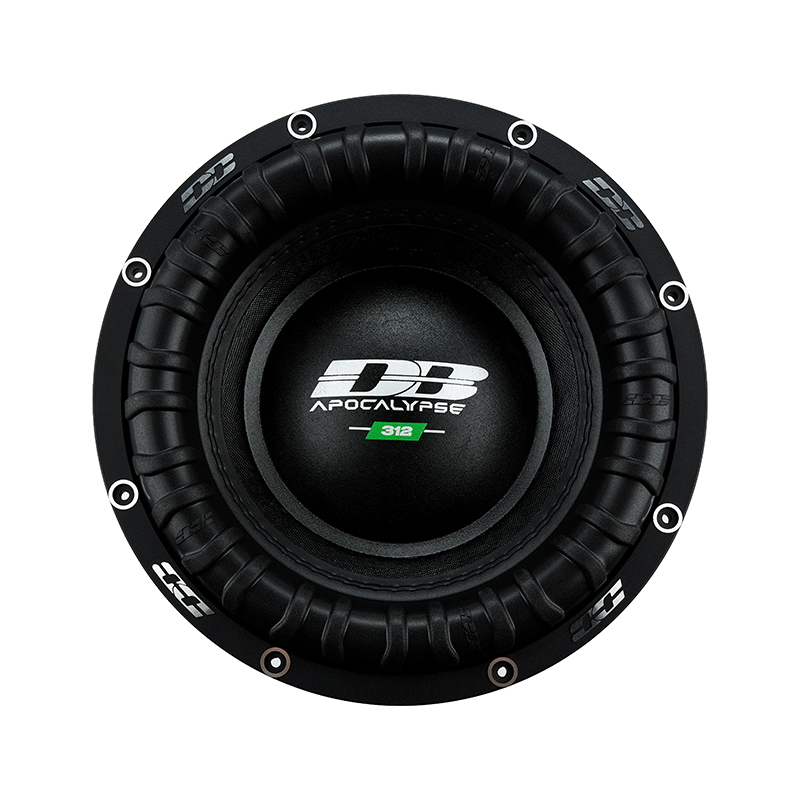

Apocalypse DB-312 D1/D2
| Model | DB-312 D1 / DB-312 D2 |
| Type | Subwoofer |
| Size | 12 inch |
| Voice coil size | 3.00 inch |
| Cone | Paper |
| Magnet | Ferrite |
| Voice coil wire | Alu |
| Surround | Foam |
| RMS Power | 3000 W |
| MAX Power | 6000 W |
| Frame | Alu |
| Impedance | 1+1 / 2+2 Ohm |
| SPL | 85.50 / 85.20 dB |
| Fs | 31.00 / 32.00 Hz |
| Qts | 0.41 / 0.48 |
| BL | 19.00 / 23.70 |
| Vas | 25.30 / 24.90 L |
| Xmeh | 50.00 / 50.00 mm |
| Xmax | 25.00 / 25.00 mm |
| Mounting depth | 10.83 inch (275.0 mm) |
| Cut-out dimension | 12.28 inch (312.0 mm) |
| Gross weight | 81.57 lb (37.00 kg) |
