Series: Apocalypse
Package Quantity: Pair

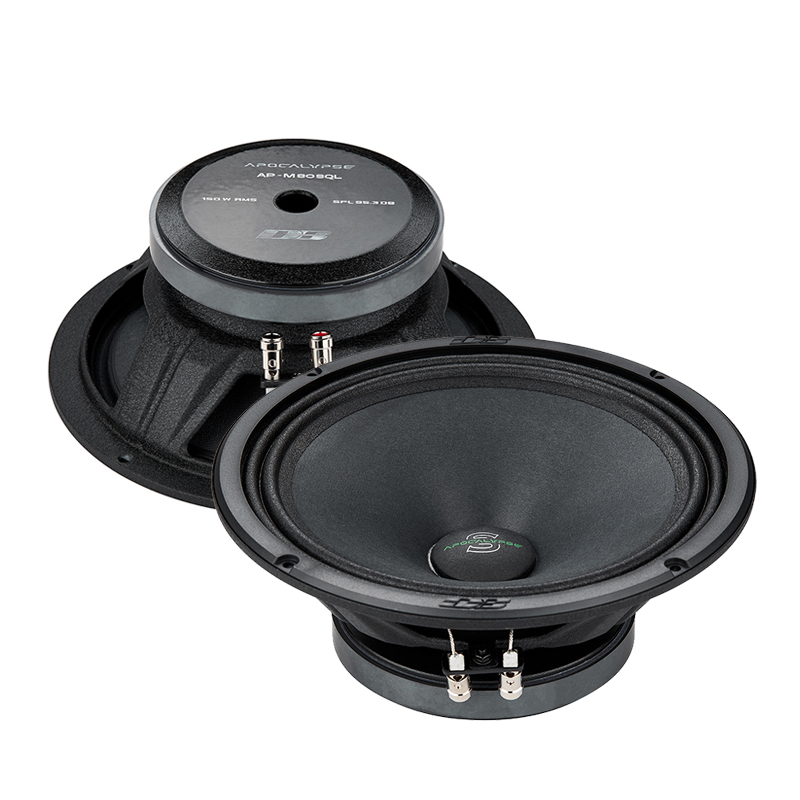

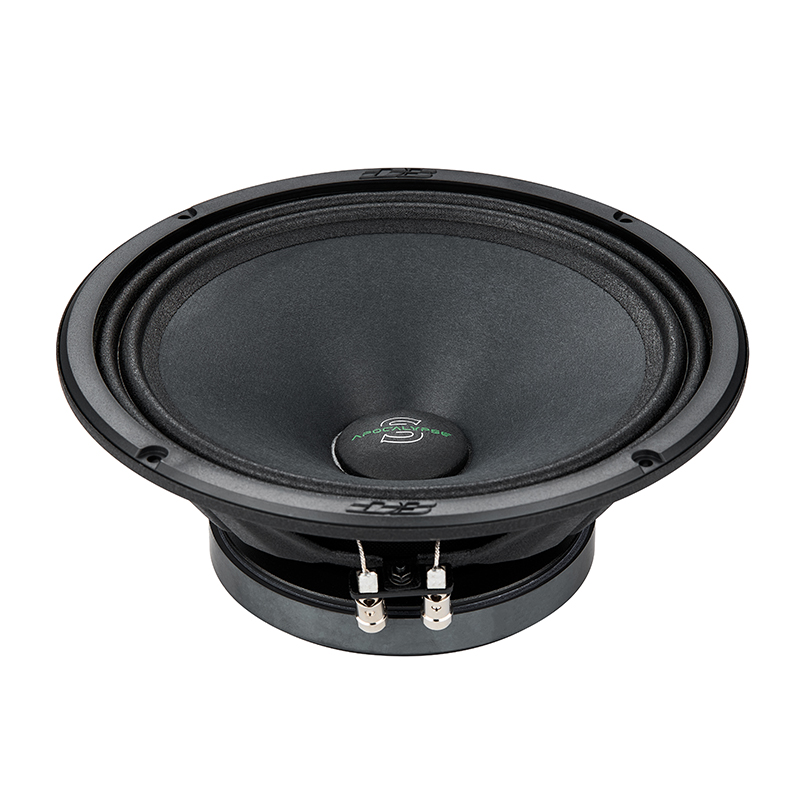

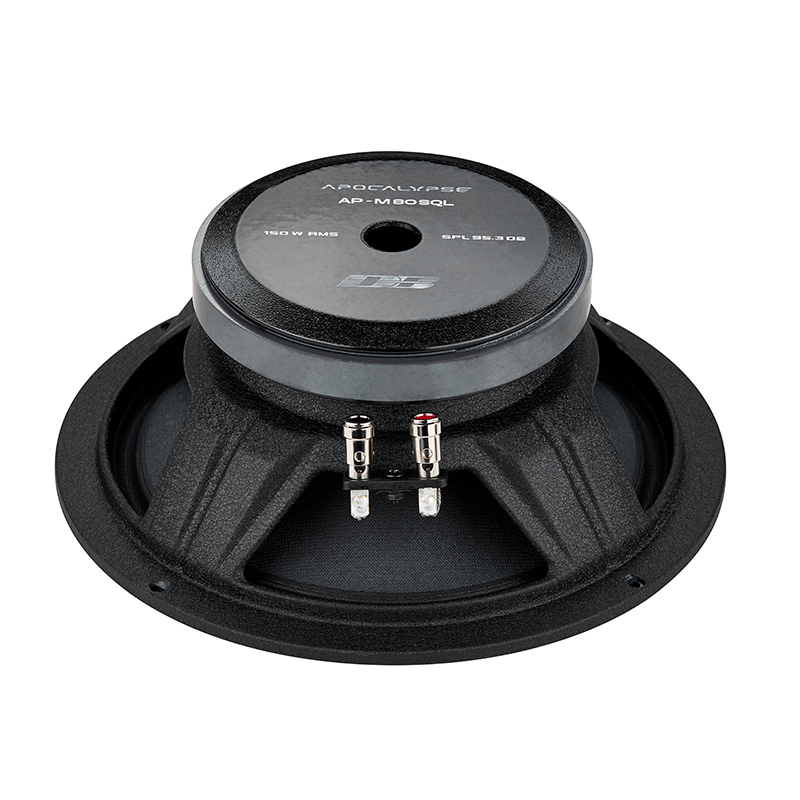

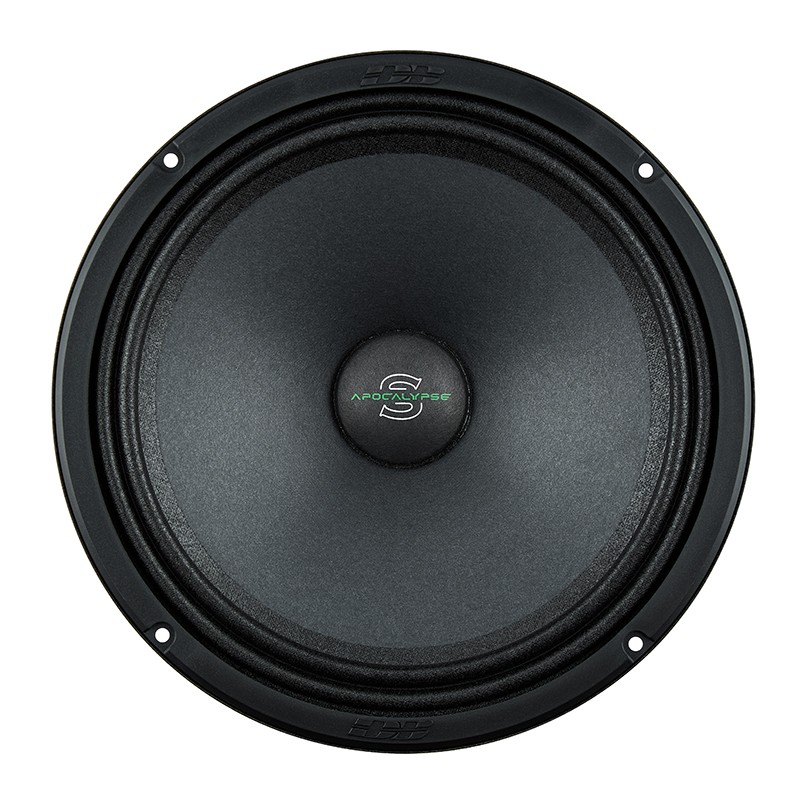

Apocalypse AP-M80SQL
| Model | AP-M80SQL |
| Type | Midrange |
| Size | 8" |
| Frequency response | 80-14000 Hz |
| Package quantity | Pair |
| Voice coil size | 1.50" |
| Cone | Paper |
| Magnet | Hybrid |
| Voice coil wire | CCAW |
| Surround | Cloth |
| RMS Power | 150 W |
| MAX Power | 300 W |
| Frame | Steel |
| Impedance | 4 Ohm |
| SPL | 95.30 dB |
| Fs | 80.00 Hz |
| Qts | 0.41 |
| BL | 7.44 |
| Re | 4.0 |
| Vas | 22.42 L |
| Mounting depth | 3.02" (76.7 mm) |
| Cut-out dimension | 7.17" (182.0 mm) |
| Gross weight | 9.81 lb (4.45 kg) |
