Series: Machete

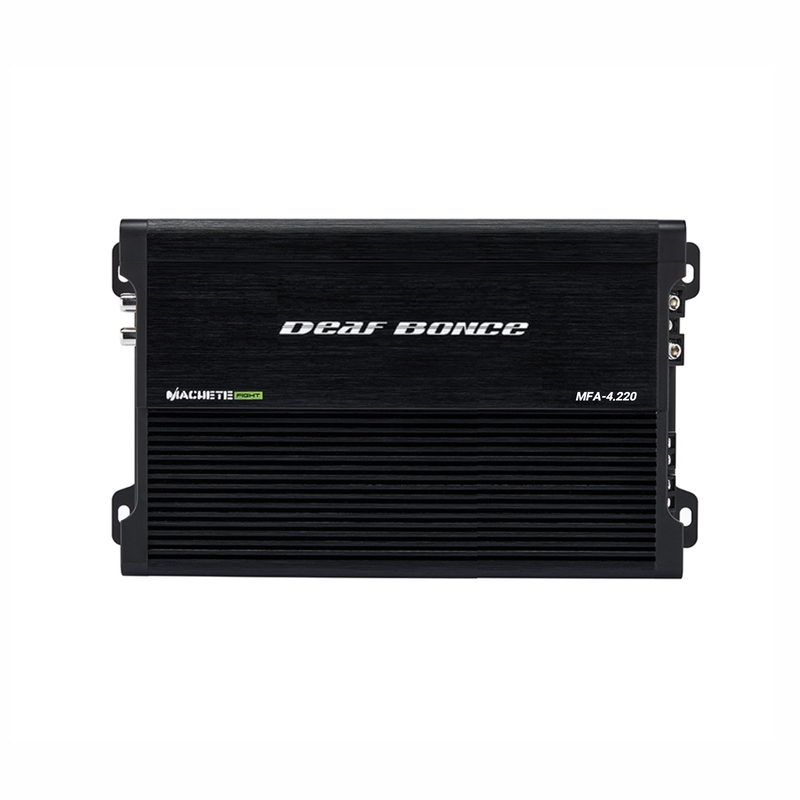

The Machete MFA-4.220 is a precision-engineered 4-channel Class D amplifier designed for those who demand uncompromising performance. With a robust output of 220W per channel at 4 Ohms, it delivers the raw power and clarity needed to dominate the street.

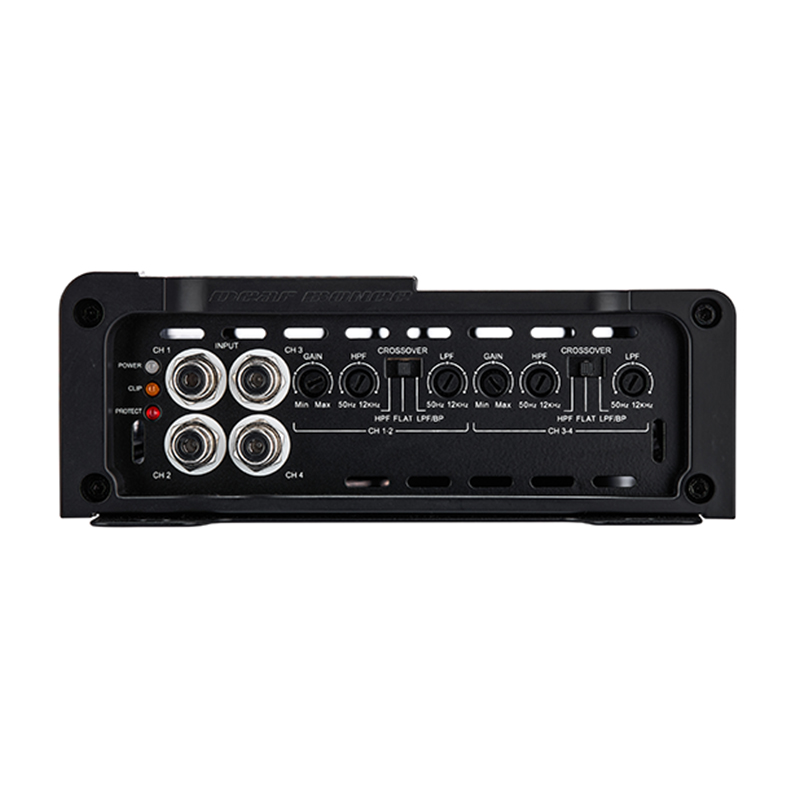

Built to withstand the toughest conditions, this amplifier features a versatile crossover system with simultaneous LPF and HPF operation, allowing you to fine-tune your audio setup with surgical precision. Compact, efficient, and lethal.
| Model | MFA-4.220 |
| Class | D |
| Number of the channels | 4 |
| Frequency response | 20-20000 Hz |
| 2 Ohm RMS Power (14.4 V) | 330 W x 4 |
| 4 Ohm RMS Power (14.4 V) | 220 W x 4 |
| 4 Ohm RMS Power (Bridge) | 660 W x 2 |
| Minimum permissible load on the channel | 2 Ohm |
| Minimum permissible load in a bridge connection | 4 Ohm |
| Input SPL | 0.4 - 8 V |
| Low pass filter | 50-12000 Hz |
| High pass filter | 50-12000 Hz |
| LPF and HPF simultaneous operation | True |
| Crossover | 12 dB/Oct |

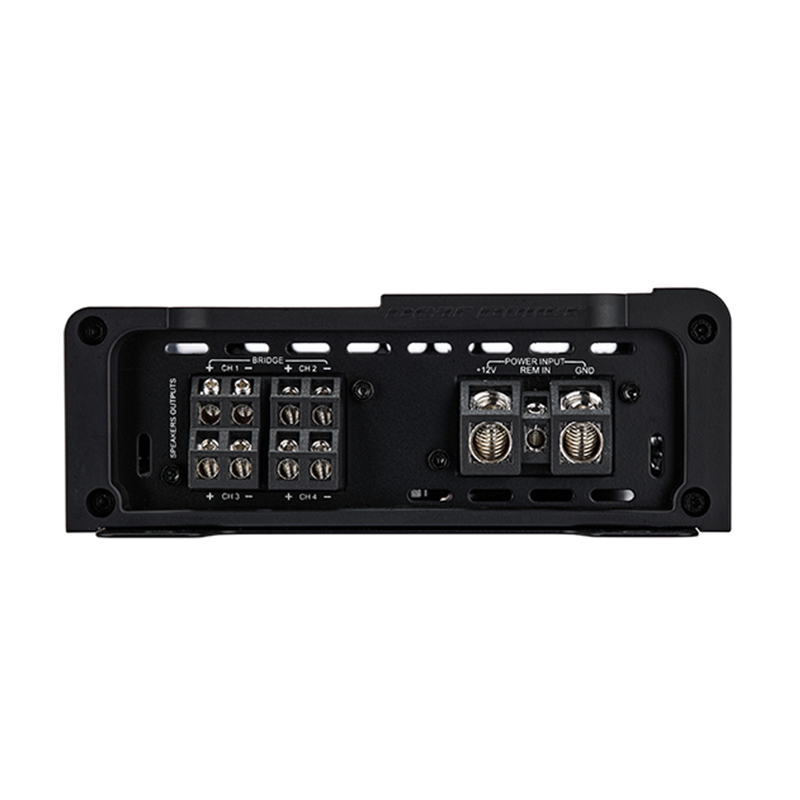

| Input terminal | 4 Ga |
| Output terminal | 10 Ga |
| Working voltage | 9 - 15 V |
| Signal-to-noise ratio | ≥ 90 dB |
| Size (W×L×H) | 10.51 × 5.98 × 2.15 inch |
| Gross weight | 5.82 lb (2.64 kg) |
