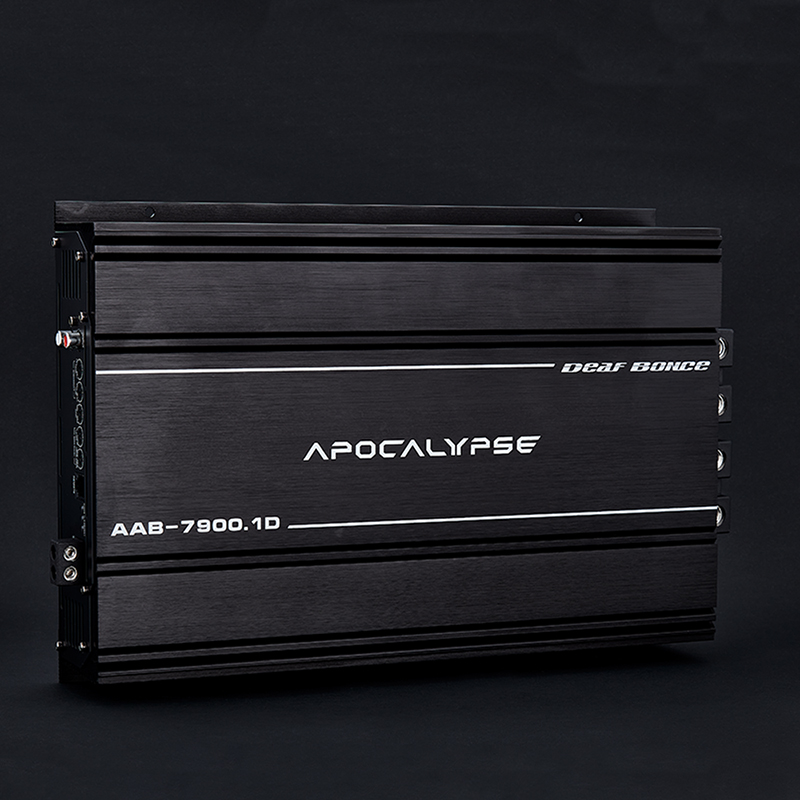

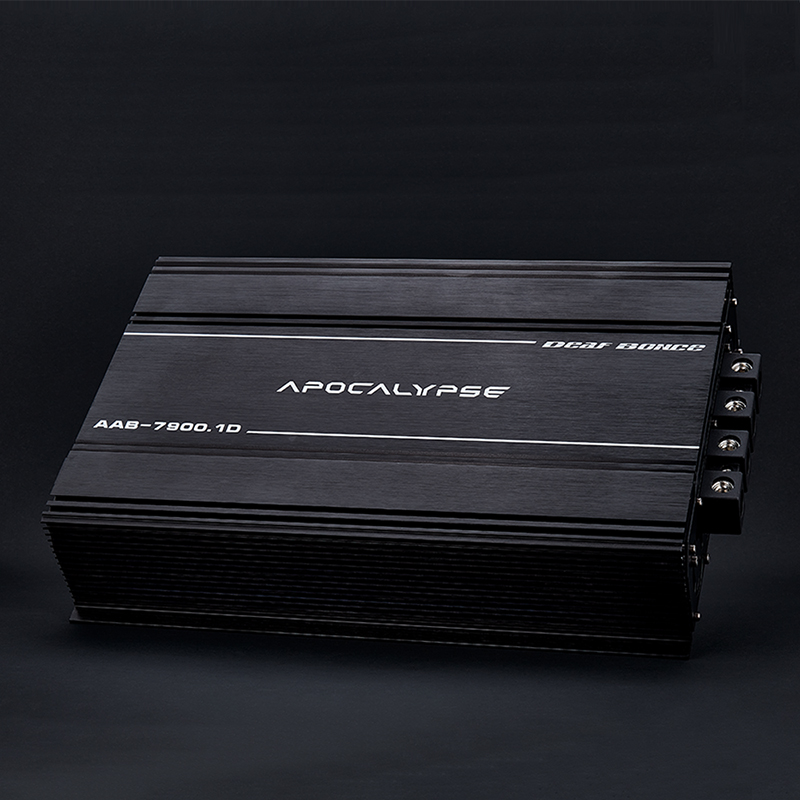

Apocalypse AAB-7900.1D

Series: Apocalypse


Specifications

ModelAAB-7900.1D
ClassD
Number of the channels1
Frequency response15 - 20000 Hz
1 Ohm RMS Power (14.4 V)8100 W
1 Ohm RMS Power (12 V)7900 W
2 Ohm RMS Power (14.4 V)5200 W
4 Ohm RMS Power (14.4 V)3000 W
Minimum permissible load on the channel1 Ohm
Input SPL0.5 - 8 V
Low pass filter80 - 20000 Hz
High pass filter15 - 80 Hz
Crossover12 dB/Oct
Input terminal0 Ga
Output terminal4 Ga
Working voltage9 - 15 V
Size (W×L×H)13.78 × 9.72 × 2.89 inch
Gross weight15.43 lb (7.00 kg)
