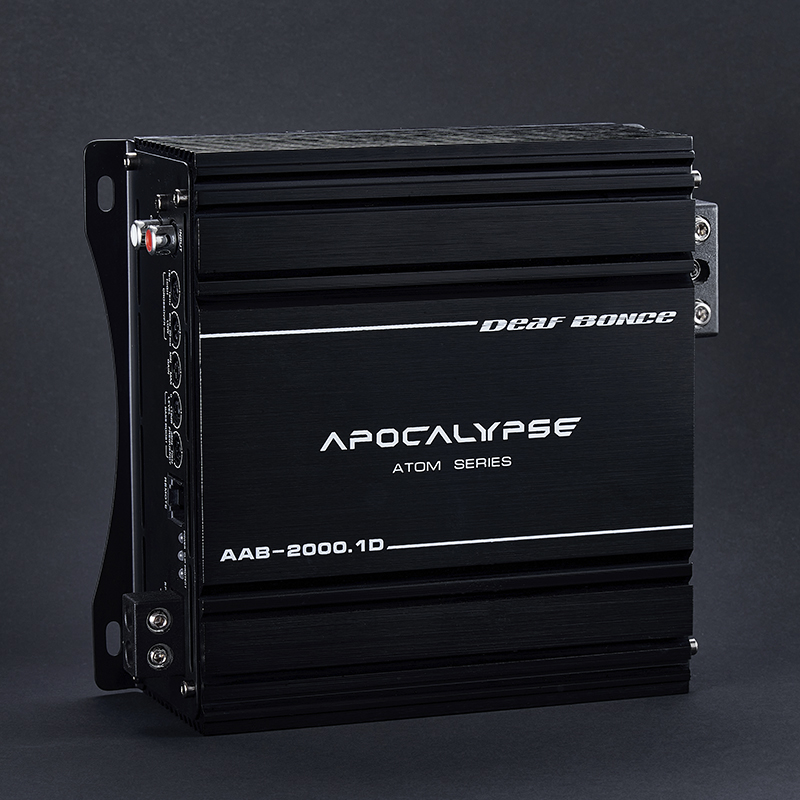

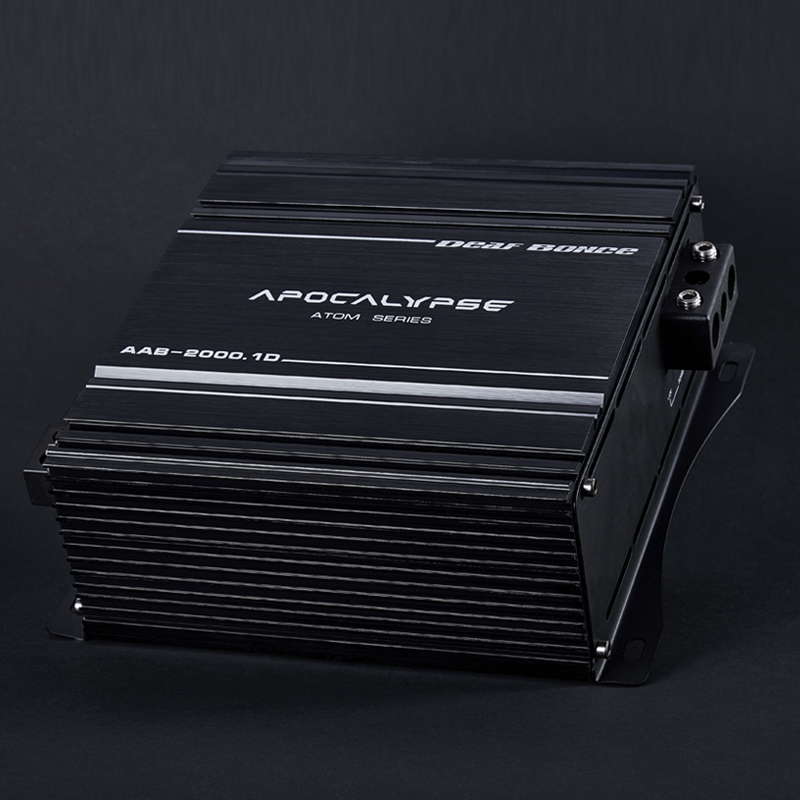

Apocalypse AAB-2000.1D Atom

Series: Apocalypse


Specifications

ModelAAB-2000.1D Atom
ClassD
Number of the channels1
Frequency response15-20000 Hz
1 Ohm RMS Power (14.4 V)1960 W
1 Ohm RMS Power (12 V)1800 W
2 Ohm RMS Power (14.4 V)1300 W
4 Ohm RMS Power (14.4 V)750 W
Minimum permissible load on the channel1 Ohm
Input SPL0.2 - 6 V

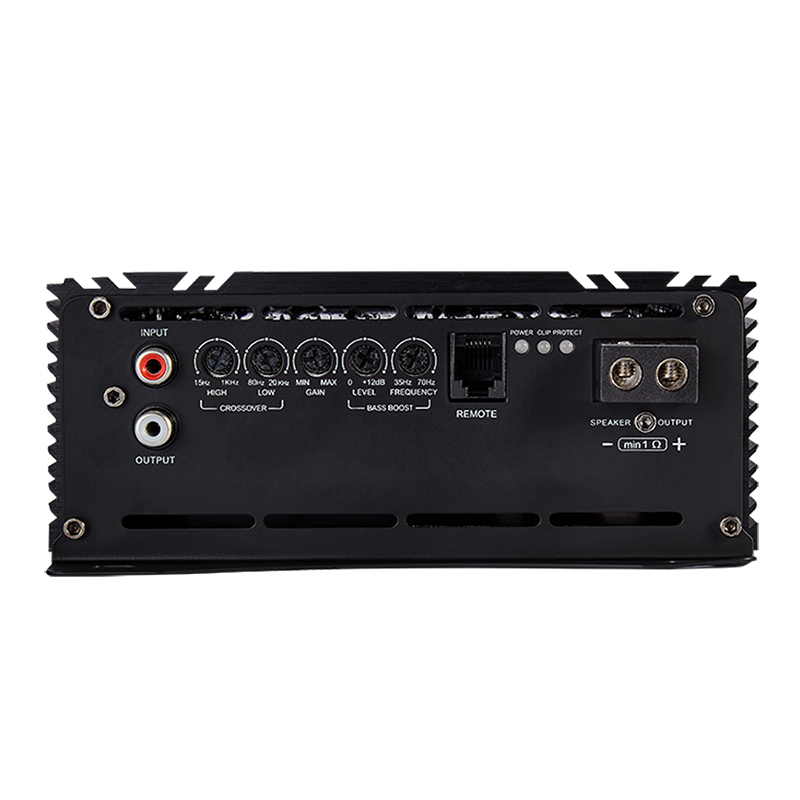

Low pass filter80-20000 Hz
High pass filter15-1000 Hz
Crossover12 dB/Oct
Bass frequency adjustment35-70 Hz

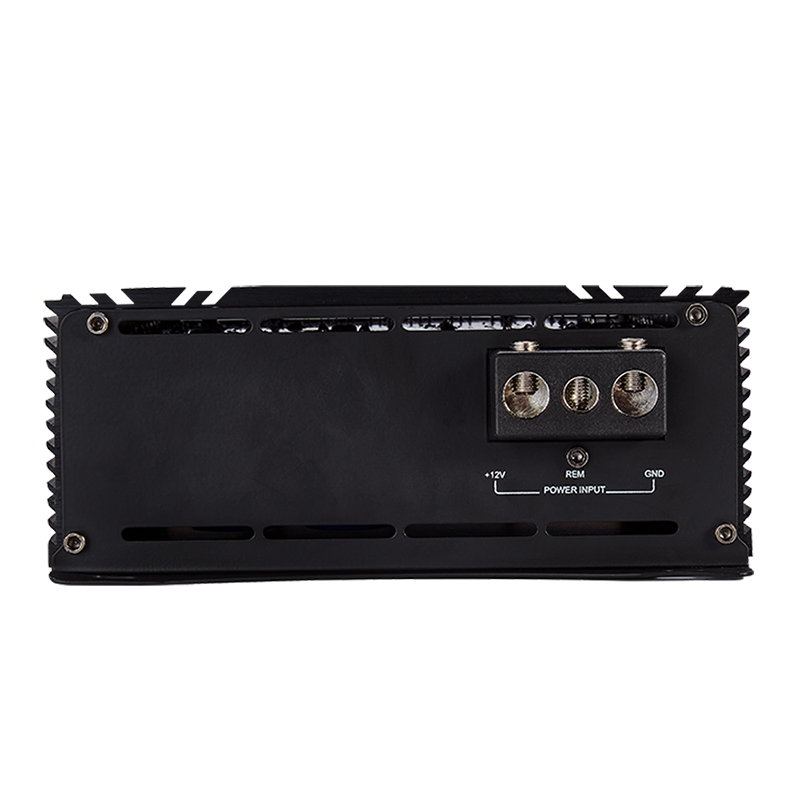

Input terminal4 Ga
Output terminal8 Ga
Damping factor≥ 210
Working voltage9 - 15 V
Signal-to-noise ratio≥ 100 dB
Size (W×L×H)6.30 × 6.89 × 2.50 inch
Gross weight4.85 lb (2.20 kg)
