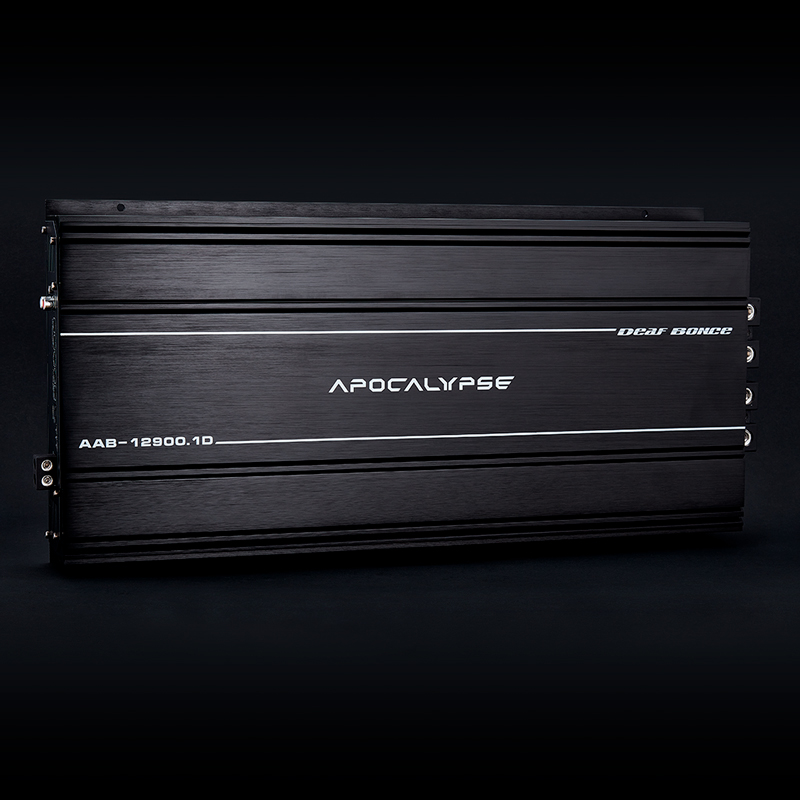

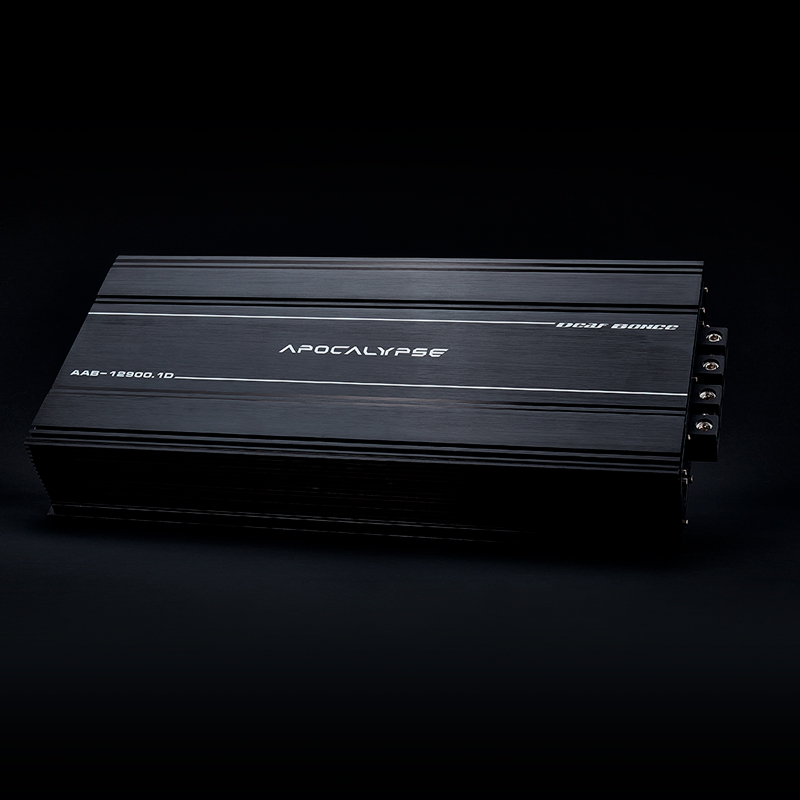

Model | AAB-12900.1D |
Class | D |
Number of the channels | 1 |
Frequency response | 10-20000 Hz |
1 Ohm RMS Power (14.4 V) | 13000 W |
1 Ohm RMS Power (12 V) | 11000 W |
2 Ohm RMS Power (14.4 V) | 7500 W |
4 Ohm RMS Power (14.4 V) | 4500 W |
Minimum permissible load on the channel | 1 Ohm |
Input SPL | 0.5 - 8 V |

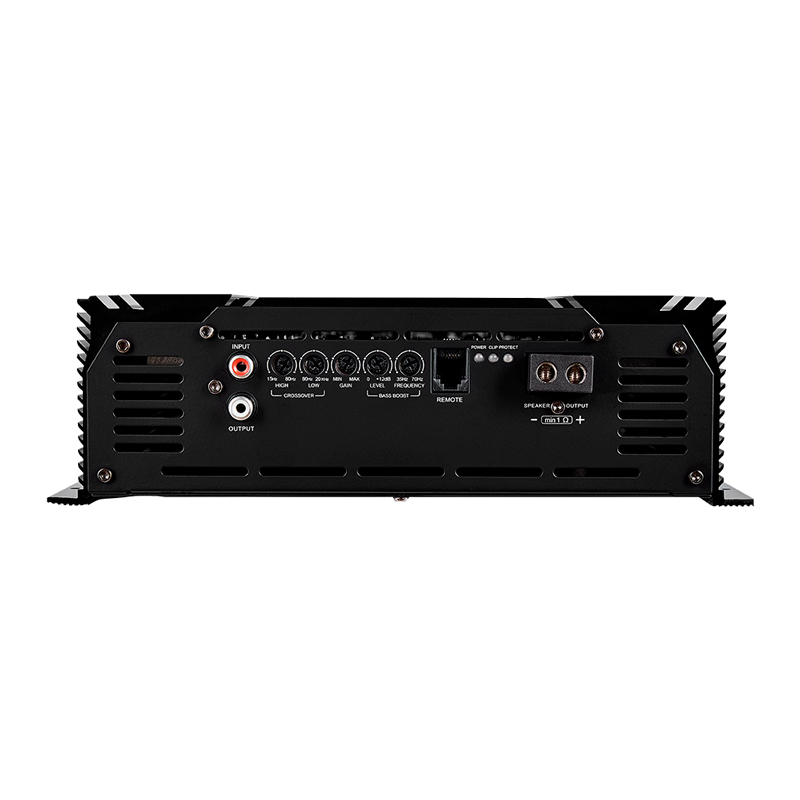

Low pass filter | 80-20000 Hz |
High pass filter | 15-80 Hz |
Crossover | 12 dB/Oct |
Bass frequency adjustment | 35-70 Hz |

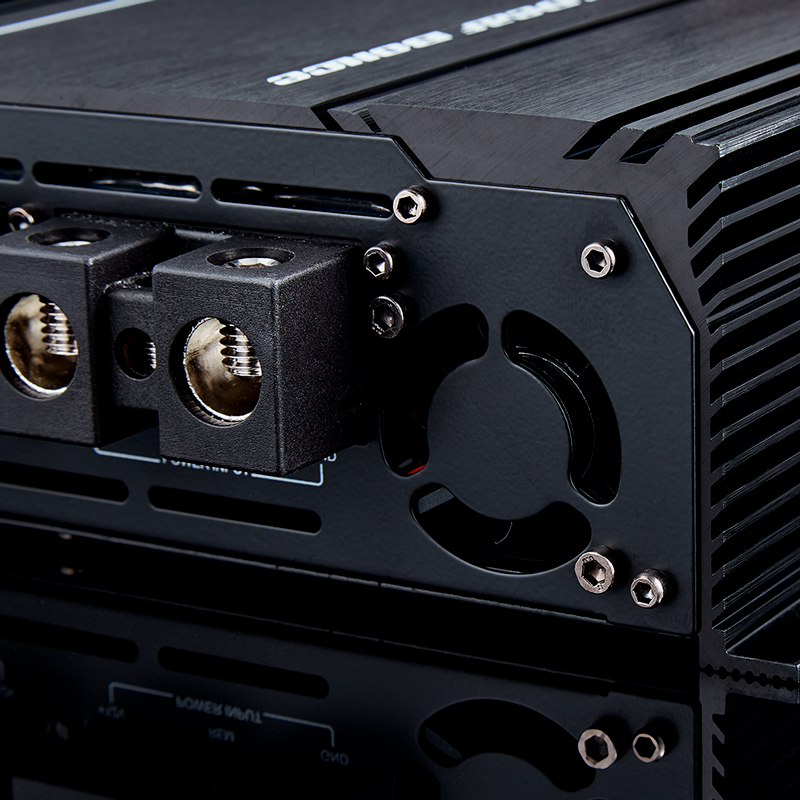

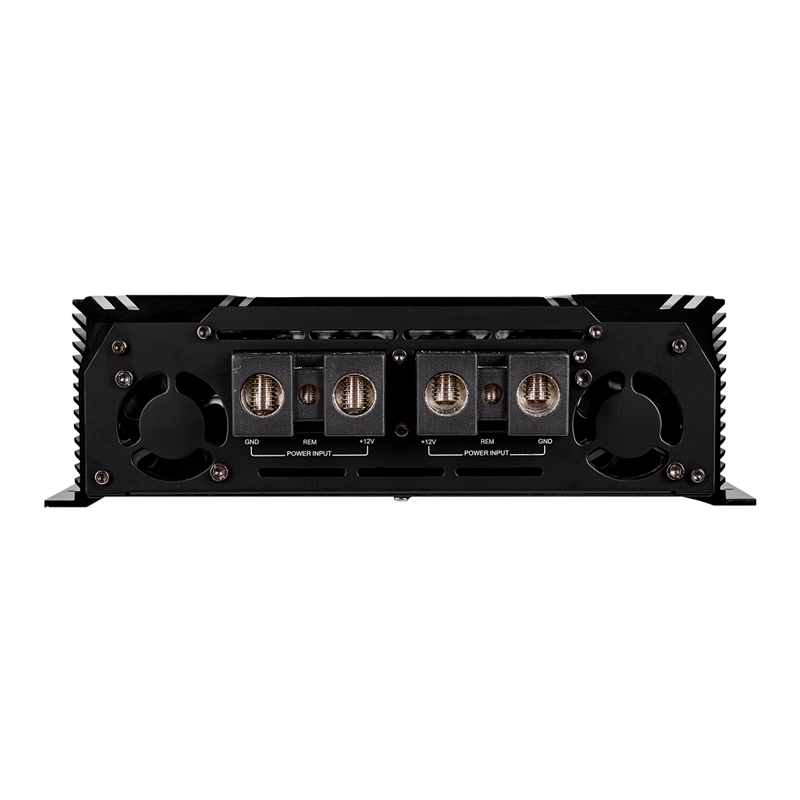

Input terminal | 0 Ga |
Output terminal | 8 Ga |
Damping factor | ≥ 210 |
Working voltage | 9 - 15 V |
Signal-to-noise ratio | ≥ 100 dB |
Size (W×L×H) | 20.83 × 9.72 × 2.89 inch |
Gross weight | 23.15 lb (10.50 kg) |
